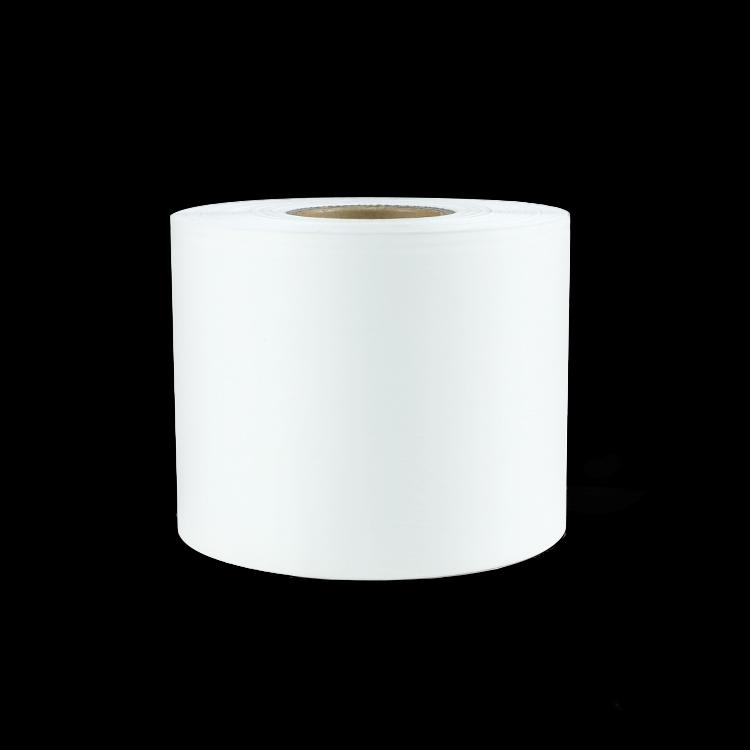

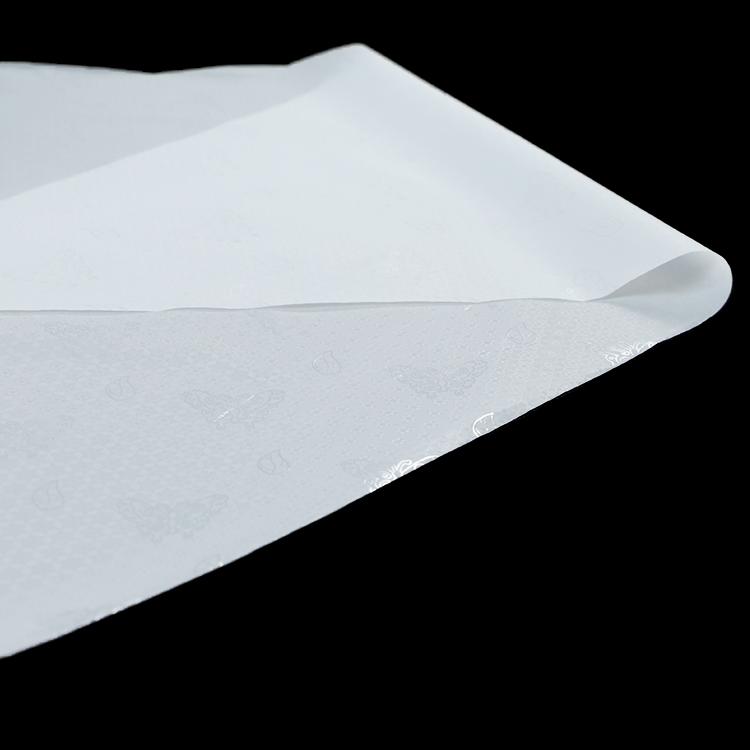

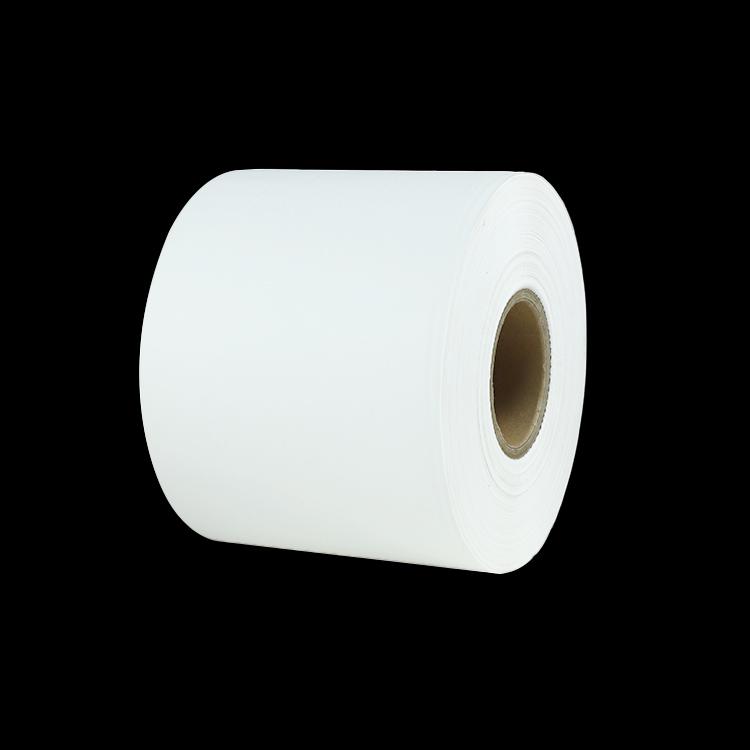

PE Film Pouch Film For Sanitary Pad Raw Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE film features:

Composition: Polyethylene

Basic Weight: 15-45gsm

Diameter:400-600mm

Width: 50mm-2300mm

Printing: ≤8 colors

Loading quantity:20-23 tons/20GP.

Performance:

1. It can be laminated with nonwoven fabric online;

2. It can be printed with normal ink, water-based ink and wetness indicator, max. 8 colors;

3. It can be embossed and perforated;

4. It can be smooth and matte;

5. Full lamination film can be 25gsm (film + nonwoven + glue)

Application:

1. Back sheet for baby diaper, adult diaper, sanitary napkins, under pads;

2. Top sheet or pouch film for sanitary napkins;

3. Medical protective clothing, medical sheet, operation cloth and bed cover, etc.

Test

Item

Technical Requirement

Appreance

Width(mm)

180mm

  (Outside Roll Diameter)mm/Length(m)

Φ450mm/5000m

(Core Inside Diameter)mm

76mm

The Test Items

First

Second

Third

Average

Tensile Strenght

CM Tensile(N)

11.2

11.2

11.1

11.166

MD Tensile(N)

16.2

16.1

16.4

16.233

Break Elongation rate (%)

CM Tensile(%)

400.3

401.45

398.71

400.153

MD Tensile(%)

399.18

400.42

397.42

399.005

Related Resource


PE Film Pouch Film For Sanitary Pad Raw Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of PE Film Pouch Film For Sanitary Pad Raw Materials,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Technological expertise
Wecan provide technical support and expertise to help diaper manufacturers optimize production processes and improve product quality.
Technological expertise
Partnership
A strong partnership between a diaper manufacturer and raw material supplier can result in mutual success, with both parties benefiting from shared business goals and values.
Partnership
Cost-effective prices
When a manufacturer buys raw materials directly from the source, they can negotiate bulk prices that help them keep expenses low and offer competitive diaper prices.
Cost-effective prices
PE Film Pouch Film For Sanitary Pad Raw Materials
Related Quality Control
Gram Weight Detection
Gram Weight Detection
The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Moisture Detection
Moisture Detection
The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.
We Create the Environment for QC
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
