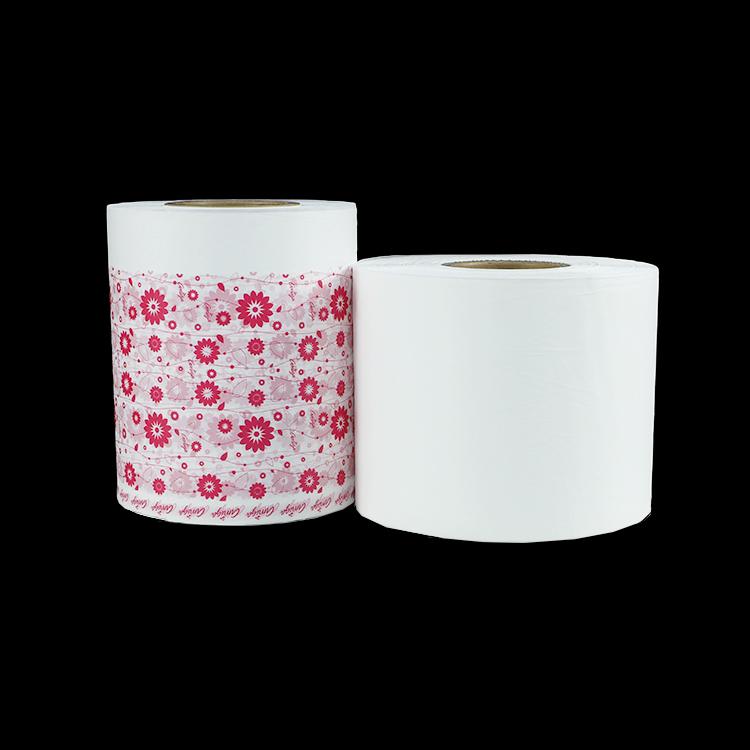

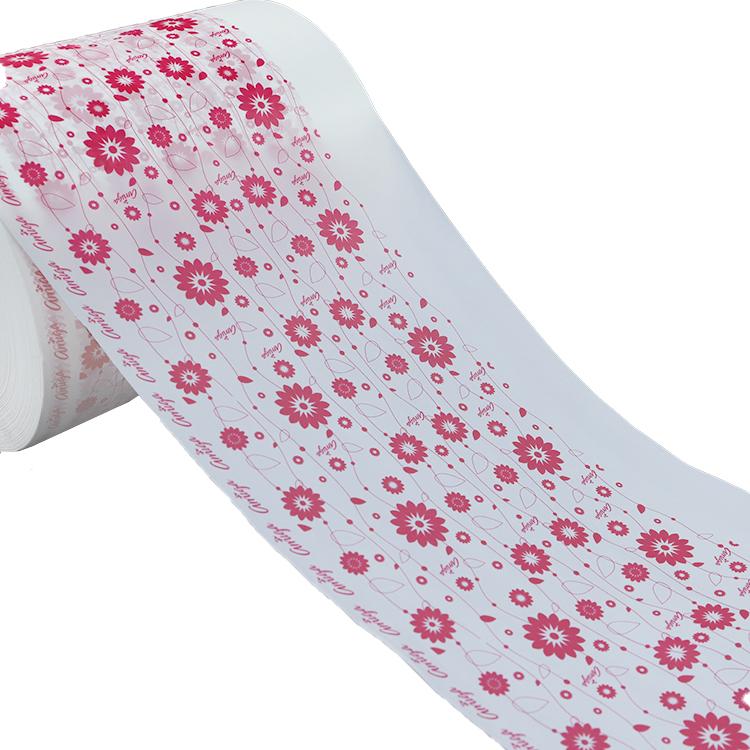

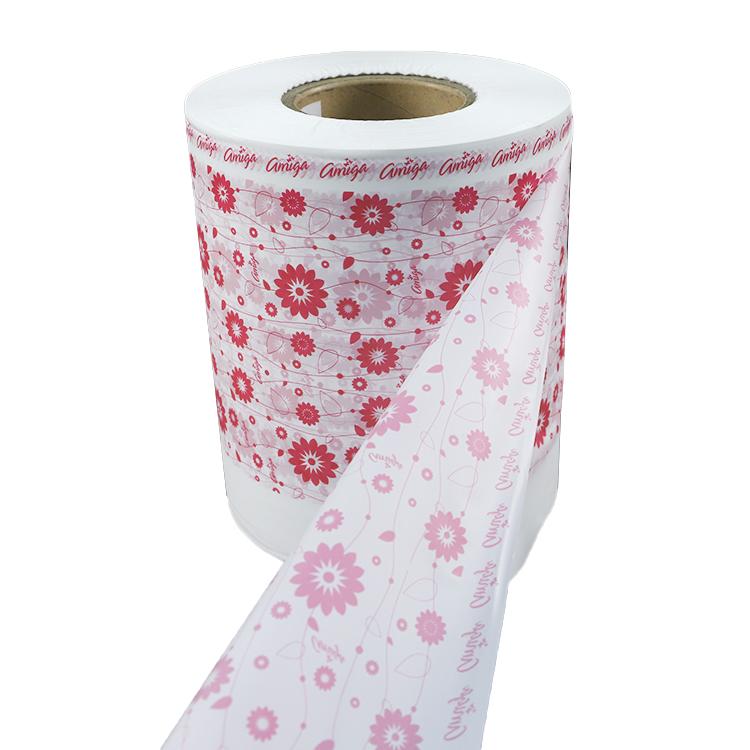

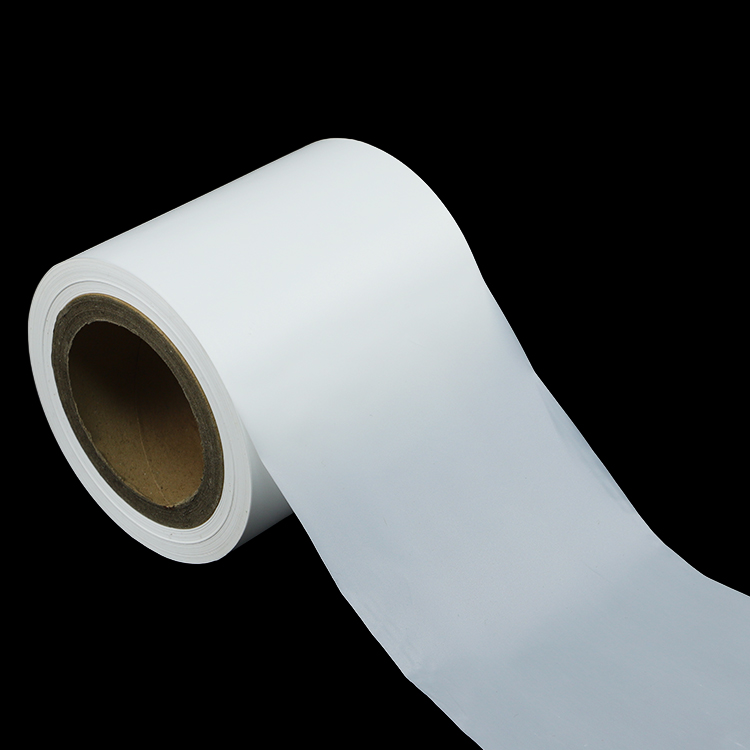

PE Pouch Film PE Wrapping Film Released PE Film For Sanitary Napkin

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE pouch film features:

Composition: Polyethylene

Basic Weight: 15-35gsm

Width: 50mm-2300mm

Colors: Printing Up to 6 colors

Loading quantity:20-23 tons/20GP.

Usage:wrapping film, raw materials for sanitary napkins

Processing Type:Multiple Extrusion


Test

Item

Technical Requirement

Appreance

Width(mm)

220mm

  (Outside Roll Diameter)mm/Length(m)

Φ450mm/5000m

(Core Inside Diameter)mm

76mm

The Test Items

First

Second

Third

Average

Tensile Strenght

CM Tensile(N)

10.2

10.8

10.3

10.433

MD Tensile(N)

15.5

15.7

15.3

15.5

Break Elongation rate (%)

CM Tensile(%)

398.14

395.31

397.07

396.84

MD Tensile(%)

375.54

375.56

371.02

374.04

Related Resource


PE Pouch Film PE Wrapping Film Released PE Film For Sanitary Napkin  Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
PE Pouch Film PE Wrapping Film Released PE Film For Sanitary Napkin
Related Quality Control
We Create the Environment for QC
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
Breathability Test
Breathability Test
The breathability of the each Backsheet in the production will be tested by a constant temperature and humidity chamber, and the airflow control error is ±500.
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
