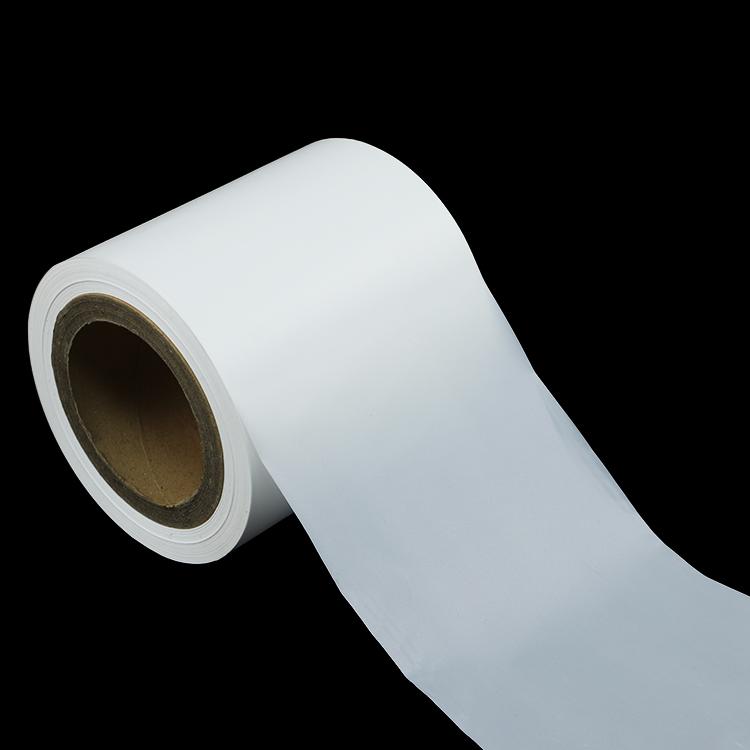

PE Film Raw Material For Disposable Diapers

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE film features:

Composition: Polyethylene

Basic Weight: 15-35gsm

Width: 50mm-2300mm

Colors: White color, and also can be printed.

Loading quantity:20-23 tons/20GP.


Pe film is also called Polyethylene: divided into low molecular weight and high molecular weight. Generally solid, milky white, thermoplastic, waxy to the touch, and the density is between 0.92 and 0.96 g/cm3. PE film is corrosion-resistant and has good insulation performance.


Test

Item

Technical Requirement

Appreance

Width(mm)

180mm

  (Outside Roll Diameter)mm/Length(m)

Φ450mm/5000m

(Core Inside Diameter)mm

76mm

The Test Items

First

Second

Third

Average

Tensile Strenght

CM Tensile(N)

11.2

11.2

11.1

11.166

MD Tensile(N)

16.2

16.1

16.4

16.233

Break Elongation rate (%)

CM Tensile(%)

400.3

401.45

398.71

400.153

MD Tensile(%)

399.18

400.42

397.42

399.005


Related Resource


PE Film Raw Material For Disposable Diapers Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.

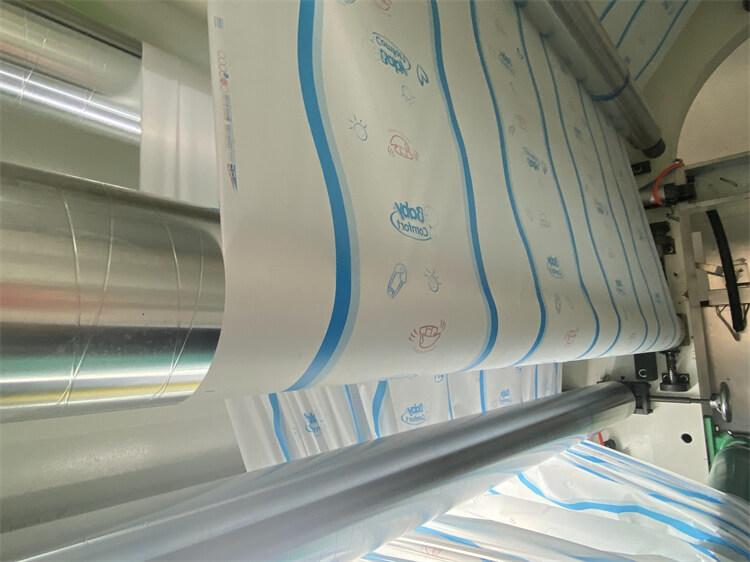

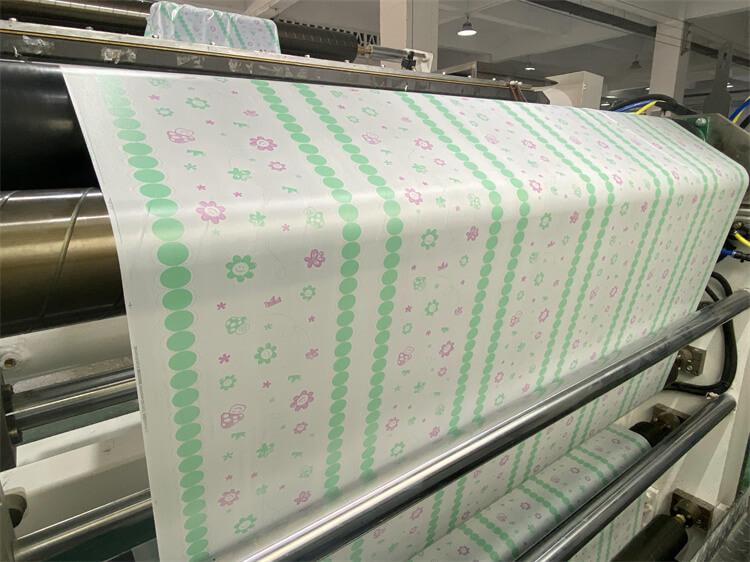

Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of PE Film Raw Material For Disposable Diapers,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Continuous supply
A reliable supplier ensures that there is always a steady supply of raw materials, which avoids delays in production and keeps manufacturing lines running smoothly.
Continuous supply
Win-Win benefit
We provide our clients with cost-effective quality PE Film Raw Material For Disposable Diapers, to improve the competitiveness of our clients products in the market, reduce the losses caused by raw materials and obtain more benefits.
Win-Win benefit
Mix loading
We will help clients to calculate the PE Film Raw Material For Disposable Diapers quantity monthly, mixing all items with full loading, save cost and save time.
Mix loading
PE Film Raw Material For Disposable Diapers
Related Quality Control

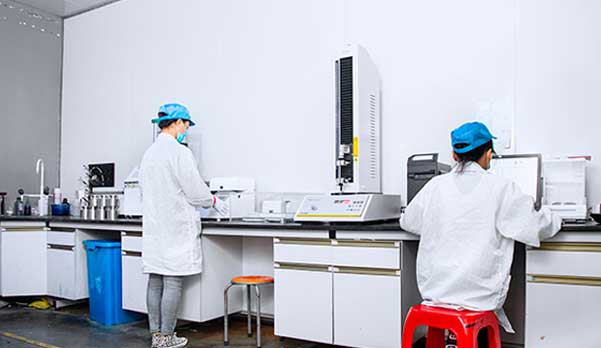

We Formulate a Strict QC Institution
We Formulate a Strict QC Institution
We create a quality environment for the PE Film Raw Material For Disposable Diapers. A better environment leads to systematic production of premium quality . In addition, we have set up a special laboratory for quality inspection.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
We Create the Environment for QC
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
