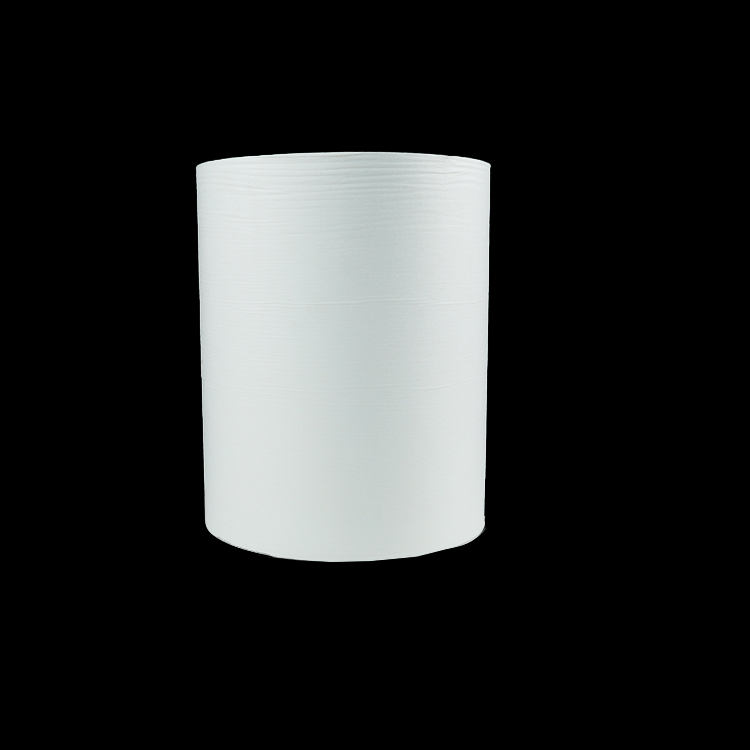

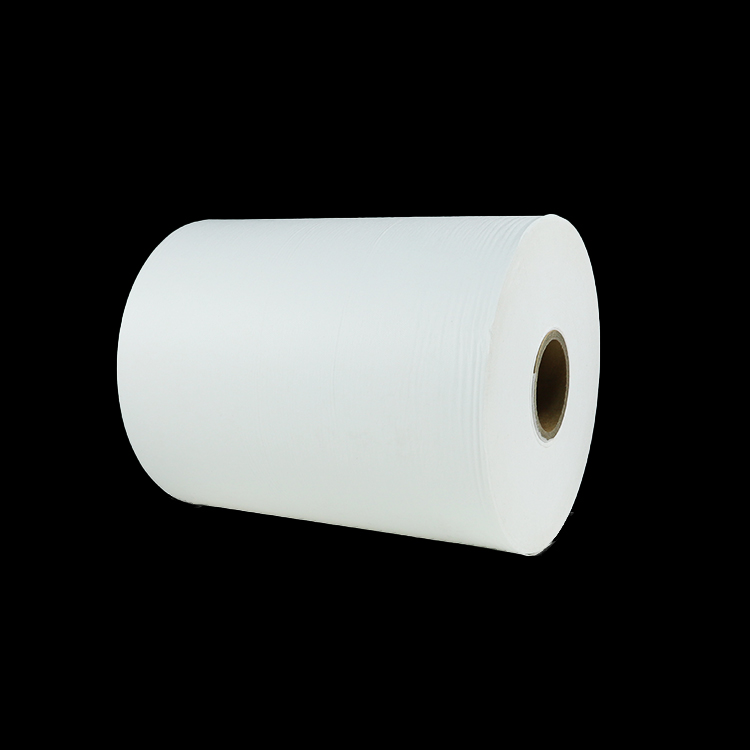

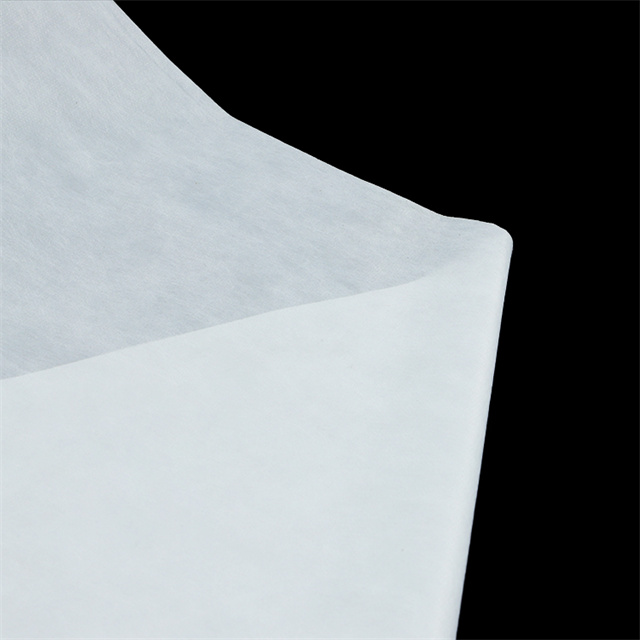

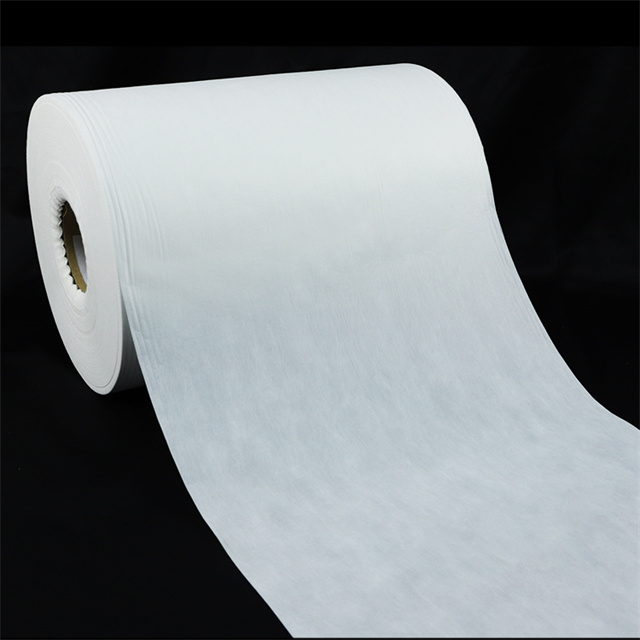

Clothlike Film for Diaper Making Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

Clothlike film features:

Composition: Polyethylene and polypropylene

Basic Weight: 23-32gsm

Width: 200mm-2300mm

Colors: Printing Up to 6 colors

Loading quantity:15 tons/40HQ

Items

Unit

Requirement

Average Result

Basic weight

gsm

28±1.5

28

Color


two colors

two colors

Width

mm

320±3

325

Tensile Strength(MD)

N

Test sample:                    width 5.0cm,                    Length 15cm, speed: 300mm/min

20

Tensile Strength(CD)

N

13

Elongation at Break(MD)

%

50

Elongation at Break(CD)

%

60

Peel Strength

N

0.7

1.21

Permeation volume

g/24h/m2

1800-3200

2414

Testing Items

Sanitation Standard Value

Result

Coliform colony

Not tested out

Not tested out

Pseudomonas aerginosa

Not tested out

Not tested out

Hemolytic streptococcus

Not tested out

Not tested out

Staphylococcus aureus

Not tested out

Not tested out

Related Resource


Clothlike Film for Diaper Making Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.

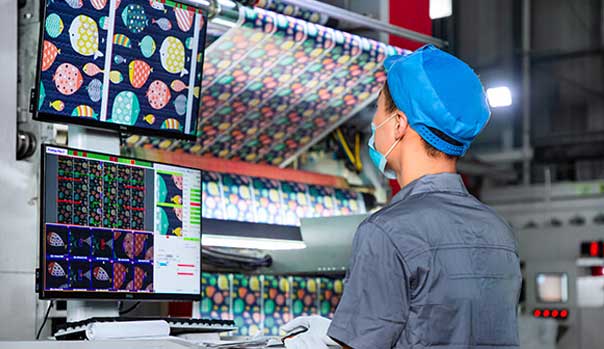

Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Clothlike Film for Diaper Making Materials
Related Quality Control
Width Measurement
Width Measurement
In the production process, the Clothlike Film for Diaper Making Materials which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.
Gram Weight Detection
Gram Weight Detection
The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.
We Formulate a Strict QC Institution
We Formulate a Strict QC Institution
We create a quality environment for the Clothlike Film for Diaper Making Materials. A better environment leads to systematic production of premium quality . In addition, we have set up a special laboratory for quality inspection.
Excellent QC Talents Work with Us
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.
