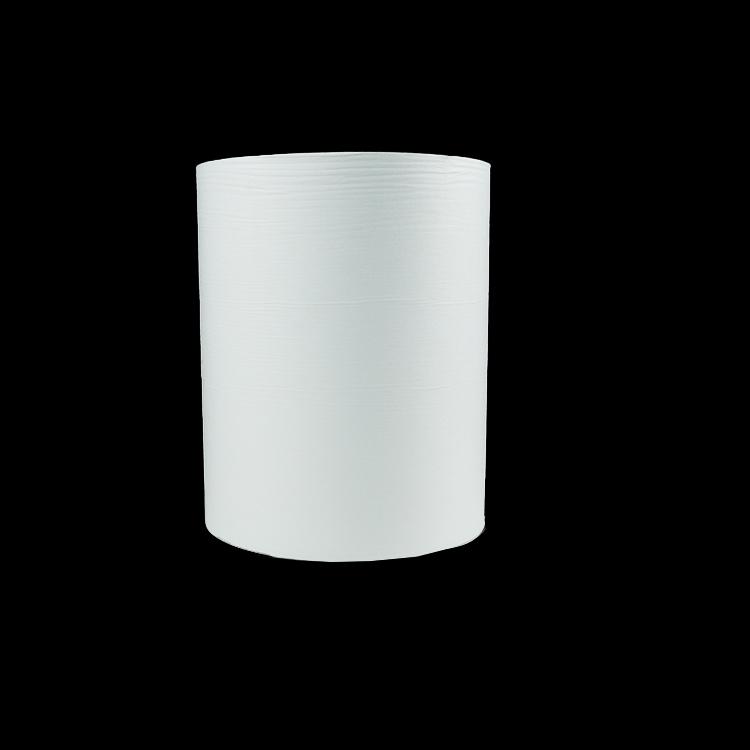

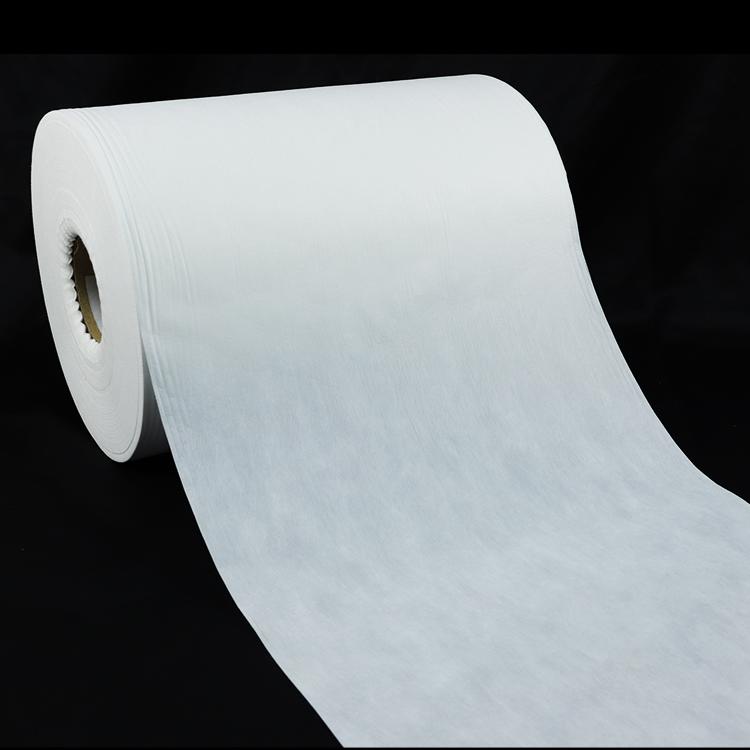

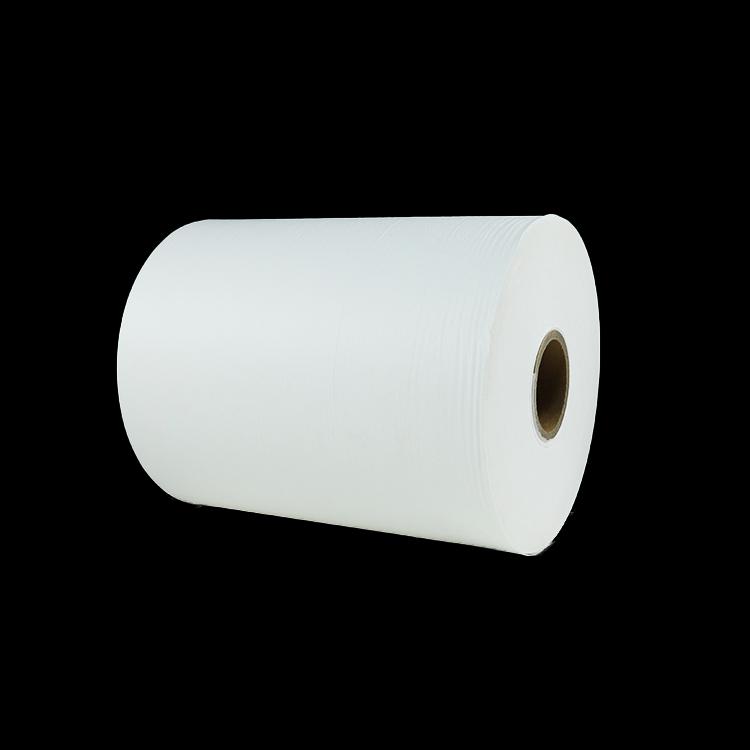

PE Laminated Film For Baby Diaper Backsheet

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE laminated film features:

Composition: Polyethylene and polypropylene

Basic Weight: 23-40gsm

Width: 200mm-2300mm

Diameter: 400-440 mm

Colors: Printing Up to 6 colors

Loading quantity:15 tons/40HQ

Application:PE laminated film is used as the backsheet of baby diaper.Full laminted film is mainly used in the backsheet of baby diaper.


Advantages:

non-toxic
odorless
corrosion-resistant
tear-resistant
low and high temperature flexility
recycle, waste treatment

Items

Unit

Requirement

Average Result

Basic weight

gsm

28±1.5

28

Color


two colors

two colors

Width

mm

320±3

325

Tensile Strength(MD)

N

Test sample:                    width 5.0cm,                    Length 15cm, speed: 300mm/min

20

Tensile Strength(CD)

N

13

Elongation at Break(MD)

%

50

Elongation at Break(CD)

%

60

Peel Strength

N

≥0.7

1.21

Permeation volume

g/24h/m2

1800-3200

2414

Testing Items

Sanitation Standard Value

Result

Coliform colony

Not tested out

Not tested out

Pseudomonas aerginosa

Not tested out

Not tested out

Hemolytic streptococcus

Not tested out

Not tested out

Staphylococcus aureus

Not tested out

Not tested out

Application Industry
Our safe and stable products are widely applied in the field of disposable hygiene products and are used to make products that are not limited to the following:
Know More about Applications
Our Certifications
Disposable Non woven Fabric SGS Testing Report
SSS Non woven Fabric SGS Testing Report
PP Non woven SGS Testing Report
Non woven Polypropylene SGS Testing Report
Non woven Fabric Roll SGS Testing Report
Non woven Fabric SGS Testing Report
ISO ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO QUALITY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
PE Laminated Film For Baby Diaper Backsheet
Manufacturer Advantage
Raw materials
for hygiene products
Win-Win benefit
Mix loading
High quality&
Good Service
JUHUA offers a wide range of products and services in the field of disposable hygiene product raw materials, which are all optimally tailored to your requirements to meet the practical needs.
We provide our clients with cost-effective quality PE Laminated Film For Baby Diaper Backsheet, to improve the competitiveness of our clients' products in the market, reduce the losses caused by raw materials and obtain more benefits. These are the basis for our long-term cooperation, mutual trust, and win-win benefit.
We will help clients to calculate the raw materials quantity monthly, mixing all items with full loading, save cost and save time.
Dedicated to strict quality control and clients service, our experienced staff members are always available to discuss your requirements and ensure full clients satisfaction.
PE Laminated Film For Baby Diaper Backsheet
Quality Assurance
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
A better environment leads to systematic production of premium quality PE Laminated Film For Baby Diaper Backsheet.
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials.
All quality inspectors have to have had more than 3 years’ experience. The pursuit of quality is not only the goal of the entire enterprise, but also the requirements of quality inspection experts in their personal work.
We Formulate a Strict QC Institution
We have developed clear instructions for production. In all production steps, employees are required to produce in strict accordance with the regulations to ensure the quality of the The factory environment is the basis of production. We create a quality environment for the PE Laminated Film For Baby Diaper Backsheet.
A better environment leads to systematic production of premium quality .
In addition, we have set up a special laboratory for quality inspection, and the standard of product compliance is accurate to the numerical value.
PE Laminated Film For Baby Diaper Backsheet
Quality Control Highlights
Moisture Detection
The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.
Gram Weight Detection
The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.
Breathability Test
The breathability of the each Backsheet in the production will be tested by a constant temperature and humidity chamber, and the airflow control error is ±500.
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Width Measurement
In the production process, the PE Laminated Film For Baby Diaper Backsheet which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.
PE Laminated Film For Baby Diaper Backsheet Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
PE Laminated Film For Baby Diaper Backsheet
Related Cases
Customers' satisfaction is our pursuit.
FAQ
1.What is the leadtime of PE Laminated Film For Baby Diaper Backsheet?
7-15 after receiving the deposit.
2.Can I make our design on the backsheet?
It is ok and the colors are up to 6 colors.
3.Why I need to choose your material?
We are 1. reliable supplier with consistent quality of materials 2. more reasonable prices 3. Best service.
4.Can I put different materials into one container?
Yes, we can and make sure it is full loading to save your cost.
5.Can I send you some of my products to ship with my container?
Yes sure, we can help and load in the right way.
6.Can you help me to design for backsheet?
Yes, we have a professional team for perfect design, and it is free.
