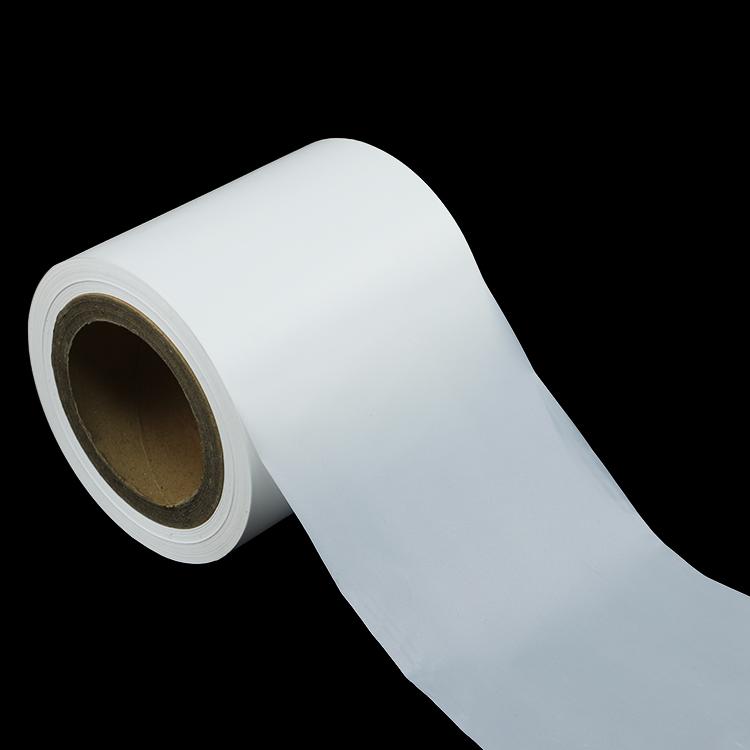

PE Film Backsheet For Baby Diaper Raw Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE film backsheet for baby diaper raw materials features:

1). Basic  weight :15g-35g /m2

2). Width : 50mm-2300mm

3). Colors: according to customers’ requirement.

4). Roll length : depend on customers’ request.

5). Loading quantity:20-23 tons/20GP.


Our PE Film Backsheet are mainly used for backsheet film of sanitary napkin and baby diaper.

PE Film Backsheet can be separated into normal grade,middle grade and high grade.

The better quality is,the better elongation of the products's MD and CD are,and the handfeeling will be better.


Test

Item

Technical Requirement

Appreance

Width(mm)

180mm

  (Outside Roll Diameter)mm/Length(m)

Φ450mm/5000m

(Core Inside Diameter)mm

76mm

The Test Items

First

Second

Third

Average

Tensile Strenght

CM Tensile(N)

11.2

11.2

11.1

11.166

MD Tensile(N)

16.2

16.1

16.4

16.233

Break Elongation rate (%)

CM Tensile(%)

400.3

401.45

398.71

400.153

MD Tensile(%)

399.18

400.42

397.42

399.005


Related Resource


Application Industry
Our safe and stable products are widely applied in the field of disposable hygiene products and are used to make products that are not limited to the following:
Know More about Applications
PE Film Backsheet For Baby Diaper Raw Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.

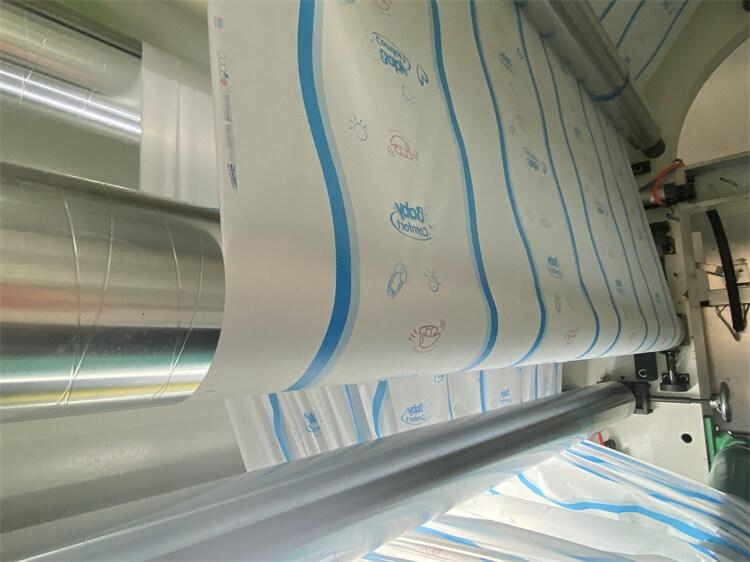

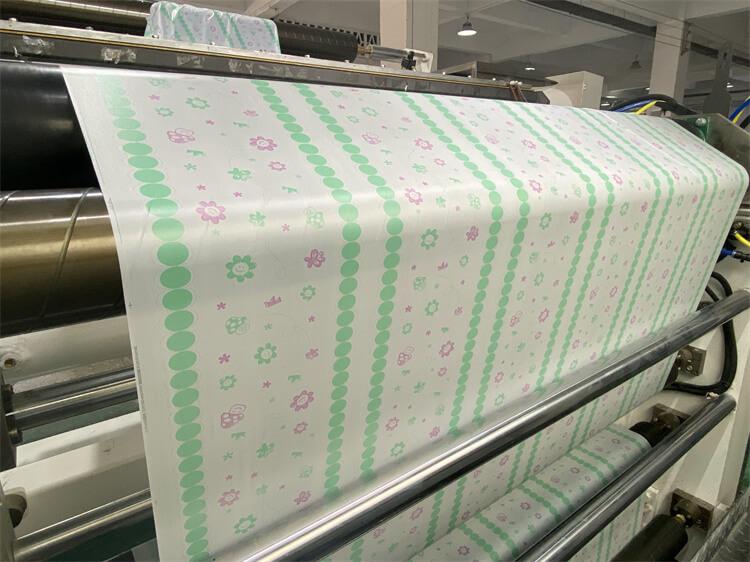

Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
PE Film Backsheet For Baby Diaper Raw Materials
Related Quality Control
Gram Weight Detection
Gram Weight Detection
The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Excellent QC Talents Work with Us
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of PE Film Backsheet For Baby Diaper Raw Materials,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Technological expertise
Wecan provide technical support and expertise to help diaper manufacturers optimize production processes and improve product quality.
Technological expertise
Consistency
By using the same raw materials for each batch of diapers, a manufacturer can ensure consistency in product quality and performance.
Consistency
High quality materials
Diaper manufacturers who source their raw materials from top-tier suppliers can offer high-quality diapers that meet the needs of parents and babies.
High quality materials
PE Film Backsheet For Baby Diaper Raw Materials
Related Services
High quality materials
Raw materials
for hygiene products
High quality materials
Win-Win benefit
High quality materials
Mix loading
High quality materials
High quality&
Good Service
Related Knowledge
Related FAQ
1.What information do u need for diaper non woven fabric?
Q.What information do u need for diaper non woven fabric? A:You need to provide us non woven type, basic weight, width, function and quantity.
2.Can I make our design on the release paper?
Q:Can I make our design on the release paper? A:Yes. You can send your design.
3.What's the width of release paper?
Q:What's the width of release paper? A:As your demand.
4.How many tons hydrophilic spunbond non woven fabric can be loaded in one 40HQ ?
Q:How many tons hydrophilic spunbond non woven fabric can be loaded in one 40HQ ? A:We can load 12 tons hydrophilic spunbond non woven fabric.
5.What hygiene product raw materials do you provide?
Q:What hygiene product raw materials do you provide? A:baby nappies, baby pull up diapers, adult diapers, baby diapers, wet wipes and other baby care products.
6.What is the basic weight of clothlike film?
Q:What is the basic weight of clothlike film? A:As your demand
