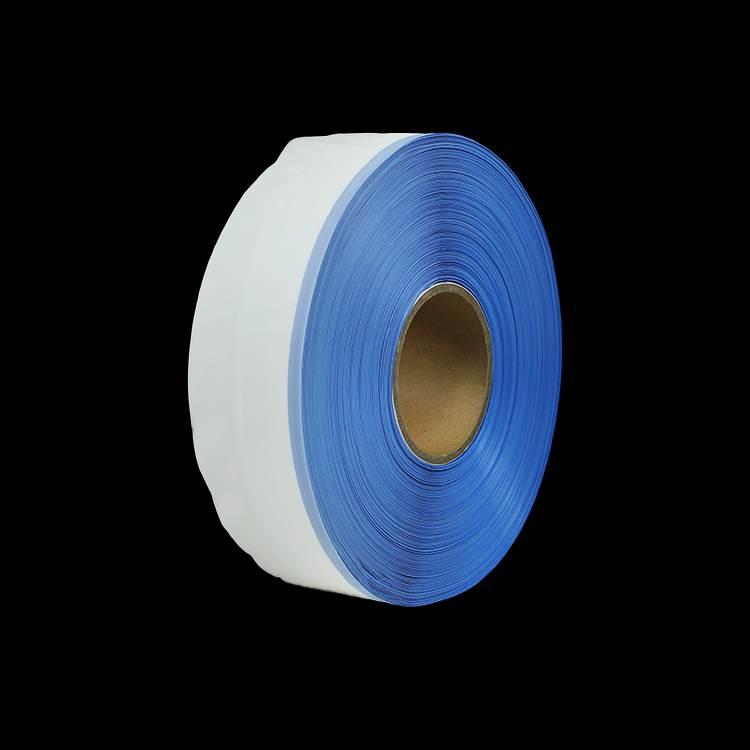

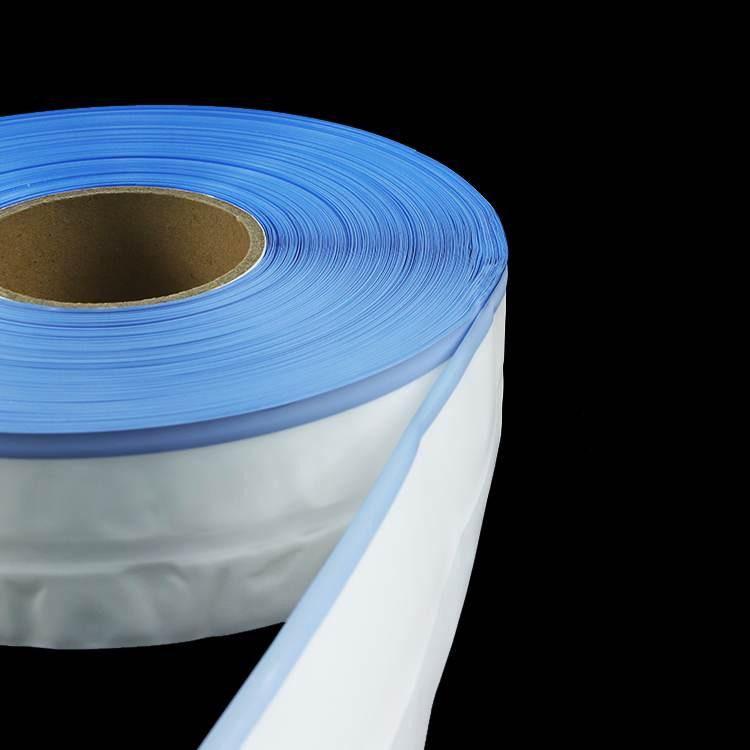

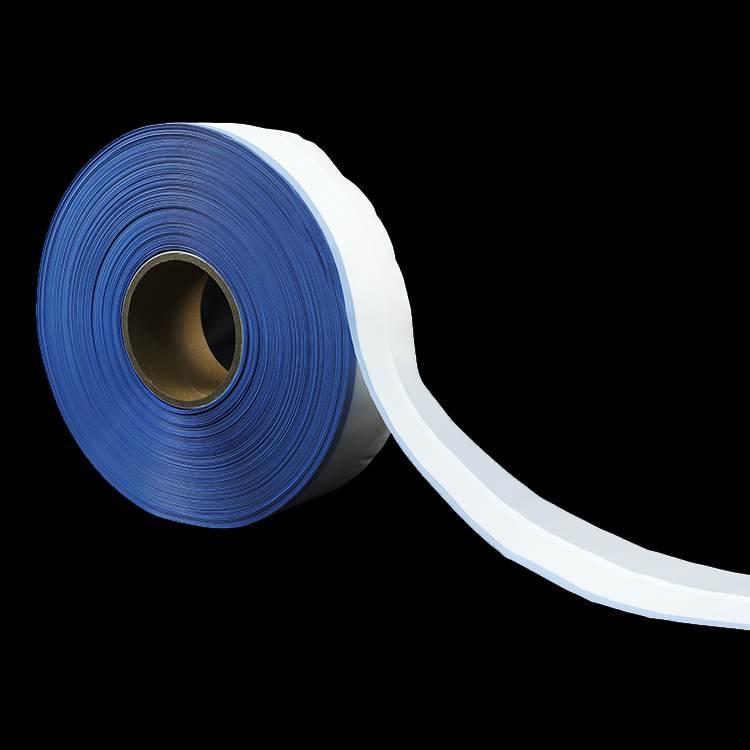

PP Side Tape for Baby Diaper Production

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper,Adult diaper
Minimum order quanity: 4 rolls
Packing details: cartons packing

PP side tape features:

PP side tape is a common ingredient in the production of baby diapers. PP side tape, also known as polypropylene tape, is a type of adhesive tape that is used to secure the sides of a baby diaper. It is typically made from a thin, flexible material that is designed to be gentle on the skin and provide a secure and comfortable fit. PP side tape is typically applied to the outer layer of a baby diaper, and it helps to ensure that the diaper stays in place and does not come loose during use. Additionally, PP side tape is also designed to be easily removable, which makes it convenient for parents to change their baby's diaper. PP side tape is a commonly used material in the production of disposable baby diapers, and it is a key component in the design of many modern diaper products.



Product Detail & Custom Options:

Material: PP/PET

Basic Weight: 125/133/143gsm, customized

Width: 55/60/62mm

Length: 600m/roll Edge

Color: White/green/blue

Inner core diameter: 76mm

Outer diameter: 450mm

180° Peel Off:≥ 11 N/25mm

180° Peel Off from PE:≥8 N/25mm

Tensile Strength:≥40 N/25mm

Application:baby diaper adult diaper



Test Method

Test Description

Unit

Result



YT-QA-006

Fasten Tape FT

90 °Peel on PP



N/25MM

N/25MM

12.75



YT-QA-006

Release Tape RT

90 °Peel on PP



N/25MM

N/25MM

12.79



YT-QA-007

Permanent tape

90 °Peel on PP

90 °Relesae between FT and RT



N/15MM

N/25MM



 5.74

 0.42

Related Resource


  • Previous: No more
  • Next:No more
Application Industry
Our safe and stable products are widely applied in the field of disposable hygiene products and are used to make products that are not limited to the following:
Know More about Applications
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of PP Side Tape for Baby Diaper Production,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Baby Diaper Raw Materials
Raw materials
for hygiene products
Baby Diaper Raw Materials
Win-Win benefit
Baby Diaper Raw Materials
Mix loading
Baby Diaper Raw Materials
High quality&
Good Service
PP Side Tape for Baby Diaper Production
Related Quality Control
Moisture Detection
Moisture Detection
The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
We Create the Environment for QC
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
PP Side Tape for Baby Diaper Production
Related Services
Quality testing
We conduct tests on materials to ensure they meet specific standards or requirements.
Quality testing
Quality certification
Our factory obtain certification for their materials to demonstrate compliance with specific standards or requirements.
Quality certification
Quality control
Our factory implement quality control measures to ensure that materials meet specific standards or requirements.
Quality control
Non-Woven Fabric Manufacturing
01
Fiber/Raw
Material
Preparation
02
Laying
03
Bonding
04
Finishing
Fiber/Raw Material Preparation
Juhua's choice of raw materials is based on processability and the ultimate performance requirements of the fibre web. Fiber is the basis for all nonwoven materials. Most natural and chemical fibers can be used in nonwoven materials. In addition, we also use high-quality adhesives and finishing chemicals, which can bond the fibers in the web to each other to obtain a web with a certain strength and integrity.
Laying
The process of forming fibres into a loose fibrous web is called laying. The reduced web strength at this time is very low, and the fibers in the web may be staple fibers or continuous filaments, depending mainly on the process of forming the web. Juhua's laying process mainly consists of dry laying, wet laying, and spin laying.
Bonding
After the fiber web is formed, the reinforcement of the loose fibers held by the fiber web by the related process is called bonding, which gives the fiber web certain physical and mechanical properties and appearance. Juhua's bonding process includes mechanical, thermal, chemical, stitch bonding, etc.
Finishing
Finishing is carried out after the bonding. Finishing is designed to improve the structure and feel of the product, and sometimes to change the properties of the product, such as breathability, absorbency and protection. Finishing methods at Juhua can be divided into two categories: mechanical methods and chemical methods. Mechanical post-treatment includes creping, calendering, shrinking, perforating, and the like. Chemical finishing includes dyeing, printing and functional finishing.
Backsheets Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Related Knowledge
Related FAQ
1.What is the application of SSS spunbond polypropylene hydrophilic non woven fabric?
Q:What is the application of SSS spunbond polypropylene hydrophilic non woven fabric? A:Sanitary napkin topsheet, baby diaper topsheet and adult diaper topsheet.
2.Can I make our design on the release paper?
Q:Can I make our design on the release paper? A:Yes. You can send your design.
3.Why I need to choose your raw materials?
Q:Why I need to choose your raw materials? A:We are 1. reliable supplier with consistent quality of materials 2. more reasonable prices 3. Best service.
4.Does the breathable film accept customization?
Q.Does the breathable film accept customization? A: Yes, your requirement for OEM or ODM is welcomed and can be satisfied.
5.What is the basic weight of clothlike film?
Q:What is the basic weight of clothlike film? A:As your demand
6.What hygiene product raw materials do you provide?
Q:What hygiene product raw materials do you provide? A:baby nappies, baby pull up diapers, adult diapers, baby diapers, wet wipes and other baby care products.
