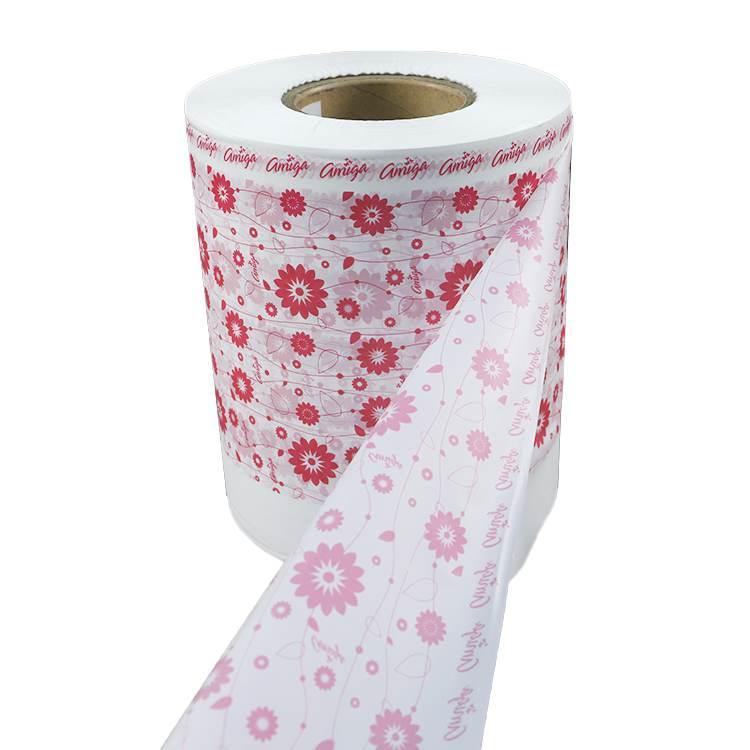

PE Wrapping Film for Sanitary Napkin Production Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

PE wrapping film features:

Composition: Polyethylene

Basic Weight: 15-35gsm

Width: 50mm-2300mm

Colors: Printing Up to 6 colors

Loading quantity:20-23 tons/20GP

Test

Item

Technical Requirement

Appreance

Width(mm)

220mm

  (Outside Roll Diameter)mm/Length(m)

Φ450mm/5000m

(Core Inside Diameter)mm

76mm

The Test Items

First

Second

Third

Average

Tensile Strenght

CM Tensile(N)

10.2

10.8

10.3

10.433

MD Tensile(N)

15.5

15.7

15.3

15.5

Break Elongation rate (%)

CM Tensile(%)

398.14

395.31

397.07

396.84

MD Tensile(%)

375.54

375.56

371.02

374.04


Related Resource


PE Wrapping Film for Sanitary Napkin Production Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
PE Wrapping Film for Sanitary Napkin Production Materials
Related Quality Control
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Excellent QC Talents Work with Us
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Width Measurement
Width Measurement
In the production process, the PE Wrapping Film for Sanitary Napkin Production Materials which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.
