YOUR POSITION：HOME > Products > Non Woven Fabrics >

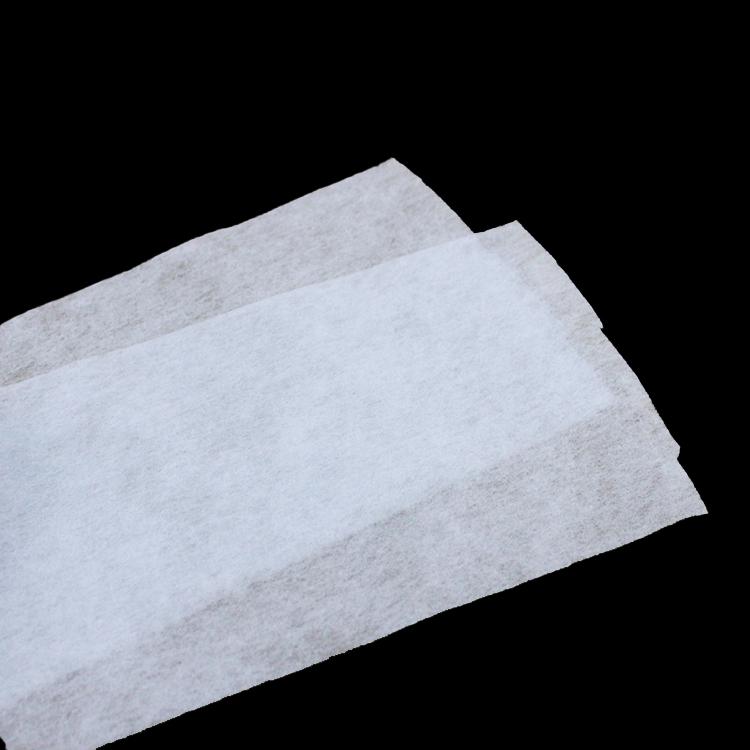

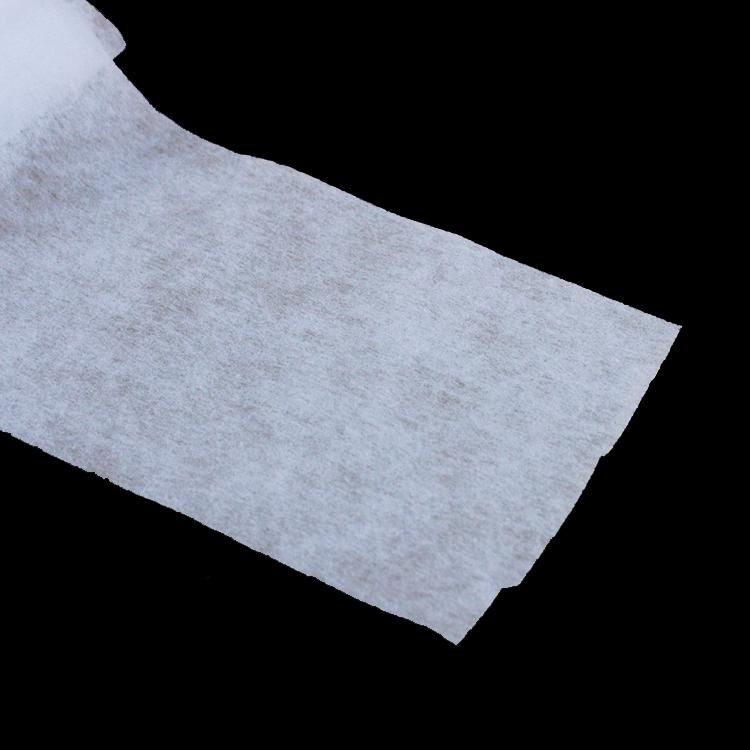

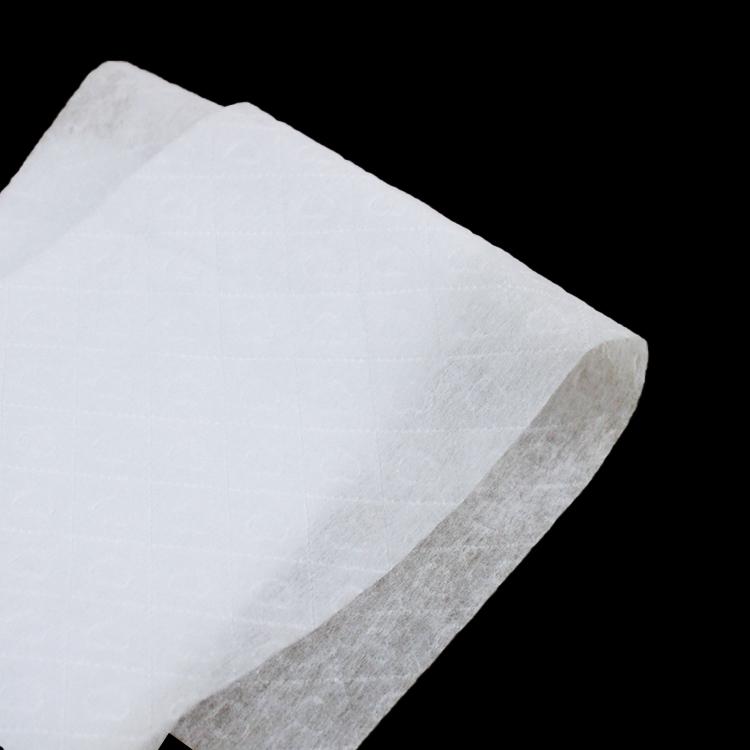

Hot Air Through ADL Non Woven For Baby Diaper Raw Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Sanitary napkin,Baby diaper,Adult diaper
Minimum order quanity: 1000.00 kgs
Packing details: Paper board with transparent film

Quote
+86-13599937366

Product Description

Hot air non woven Specification:

Air through nonwoven ADL layer
Specification: 18 GSM to 50 GSM as request
Composition: 100% 6 Denier PE/PP Bicomponent fiber
Color: white, light blue, dark blue, green
Width: 40mm, 60mm or customized

FEATURES:

1.The product is with very good uniformity
2.The product is consist of continuous filament, with good tensile strength and elongation
3.Different color to meet the customers' requirement
4.Quick water penetration
5. low wet back

Items		Unit	Requirement	Result
				Min	Max
Color		/	white	white
Core inside diameter		mm	76±1	76
Basic weight		gsm	18±2	17.2	18.9
Width		mm	180±2	179	181
3D- Dimensional Thickness		mm	-0.2+0.3	0.43	0.49
Tensile strength	MD	N/5cm	≥11	12.9	15.5
	CD		≥1.7	2.4	3.5
Breaking elongation	MD	%	≥18	54	60
	CD		≥20	95	115
Fluid Penetrating Rate	1st	S	≤2	1.03	1.25
	2nd		≤3	2.04	2.37
	3rd		≤4	2.6	3.01
Others		Wrinkles/ corrugation	None
		Roll edge appearance	Neat, Clean, No Obvious Defects
		Contamination	No Obvious Contamination; Free From Foreign Matter
		Holes/Thin spots/Formation	No Obvious Holes / Thin Spots / With Good Formation

Products Categories

Related Products

More》

Related Cases

More》

Related Resource

hot air non woven baby diaper raw materials air through non woven

Hot Air Through ADL Non Woven For Baby Diaper Raw Materials Manufacturing

Fiber/Raw

Material

Preparation

Laying

Bonding

Finishing

Fiber/Raw Material Preparation

WEIHONGLAI's choice of raw materials is based on processability and the ultimate performance requirements of the fibre web. Fiber is the basis for all nonwoven materials. Most natural and chemical fibers can be used in nonwoven materials. In addition, we also use high-quality adhesives and finishing chemicals, which can bond the fibers in the web to each other to obtain a web with a certain strength and integrity.

Laying

The process of forming fibres into a loose fibrous web is called laying. The reduced web strength at this time is very low, and the fibers in the web may be staple fibers or continuous filaments, depending mainly on the process of forming the web. Mosen's laying process mainly consists of dry laying, wet laying, and spin laying.

Bonding

After the fiber web is formed, the reinforcement of the loose fibers held by the fiber web by the related process is called bonding, which gives the fiber web certain physical and mechanical properties and appearance. WEIHONGLAI's bonding process includes mechanical, thermal, chemical, stitch bonding, etc.

Finishing

Finishing is carried out after the bonding. Finishing is designed to improve the structure and feel of the product, and sometimes to change the properties of the product, such as breathability, absorbency and protection. Finishing methods at WEIHONGLAI can be divided into two categories: mechanical methods and chemical methods. Mechanical post-treatment includes creping, calendering, shrinking, perforating, and the like. Chemical finishing includes dyeing, printing and functional finishing.
