Name: Acquisition Distribution Layer ADL For Sanitary Pad Material
Brand: JUHUA

YOUR POSITION：HOME > Products > Non Woven Fabrics >

Acquisition Distribution Layer ADL For Sanitary Pad Material

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Adult Diaper,Baby Diapers,Sanitary Pad
Minimum order quanity: 1000.00 kgs
Packing details: Transparent wrapping film with paper board

Quote
+86-13599104026

Product Description

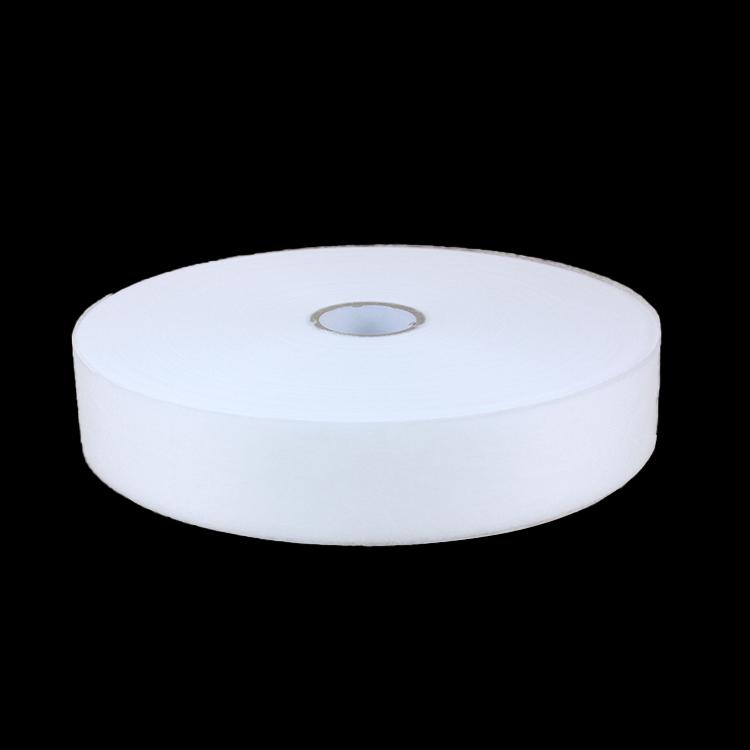

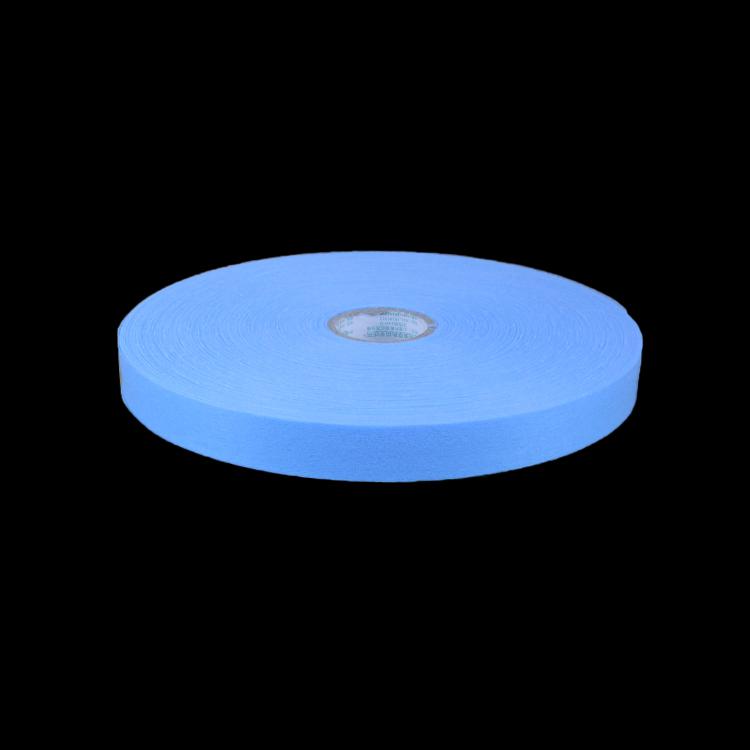

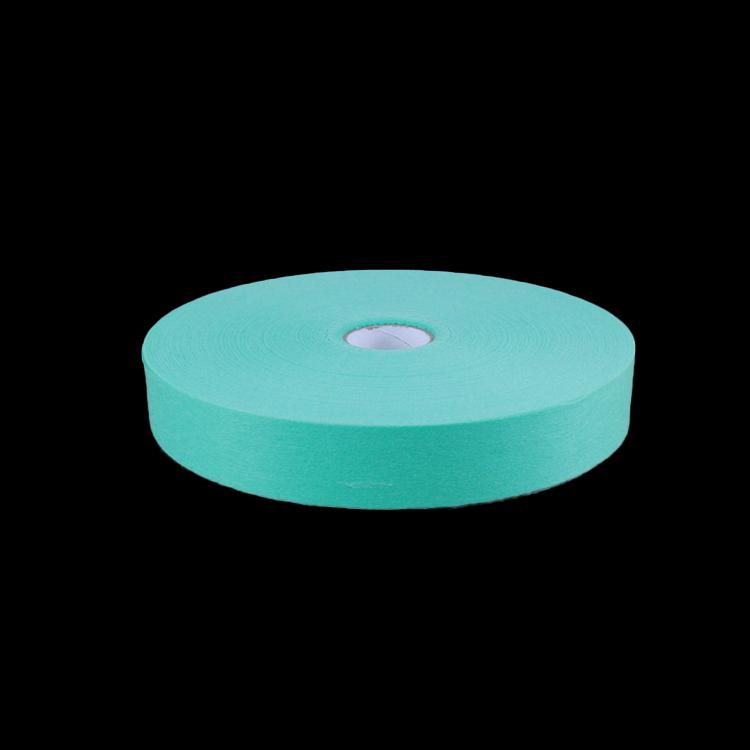

Acquisition distribution layer features:
Weight: 18g/M2 to 60g/M2 as request
Composition: 100% 6 Denier PE/PP Bicomponent fiber
Color: white, blue,green
Width: 25mm-2000mm or customized

Application:baby diaper, adult diaper and sanitary napkin raw materials

Loading quantity:

One 20GP（about 4.5 tons)

One 40HQ（about 10.5 tons）

All the test are lot production averages
Items		Unit	Requirement	Result
Color			white	white
Core inside diameter		mm	76±1	76
Basic weight		gsm	50±2	49.6
Roll slit width		mm	65±2	65
Thickness		μm	0.8	0.81
Tensile strength	MD	N/5cm	∕	70.2
	CD		∕	17.4
Breaking elongation	MD	%	∕	42.6
	CD		∕	69.2
Others		Wrinkles/ corrugation	None
		Splices	None
		Roll edge appearance	Neat, Clean, No Obvious Defects
		Contamination	No Obvious Contamination; Free From Foreign Matter
		Holes/Thin spots/Formation	No Obvious Holes / Thin Spots / With Good Formation

Products Categories

Related Products

More》

sanitary pad material Acquisition distribution layer ADL price

Acquisition Distribution Layer ADL For Sanitary Pad Material
Quality Assurance

We Create the Environment for QC

The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
A better environment leads to systematic production of premium quality Acquisition Distribution Layer ADL For Sanitary Pad Material.

Excellent QC Talents Work with Us

JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials.
All quality inspectors have to have had more than 3 years’ experience. The pursuit of quality is not only the goal of the entire enterprise, but also the requirements of quality inspection experts in their personal work.

We Formulate a Strict QC Institution

We have developed clear instructions for production. In all production steps, employees are required to produce in strict accordance with the regulations to ensure the quality of the The factory environment is the basis of production. We create a quality environment for the Acquisition Distribution Layer ADL For Sanitary Pad Material.
A better environment leads to systematic production of premium quality .
In addition, we have set up a special laboratory for quality inspection, and the standard of product compliance is accurate to the numerical value.

Acquisition Distribution Layer ADL For Sanitary Pad Material
Quality Control Highlights

Moisture Detection

The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.

Gram Weight Detection

The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.

Breathability Test

The breathability of the each Backsheet in the production will be tested by a constant temperature and humidity chamber, and the airflow control error is ±500.

Tensile Test

The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.

Printing Detection

The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.

Width Measurement

In the production process, the Acquisition Distribution Layer ADL For Sanitary Pad Material which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.

Acquisition Distribution Layer ADL For Sanitary Pad Material Manufacturing

Fiber/Raw

Material

Preparation

Laying

Bonding

Finishing

Fiber/Raw Material Preparation

Juhua's choice of raw materials is based on processability and the ultimate performance requirements of the fibre web. Fiber is the basis for all nonwoven materials. Most natural and chemical fibers can be used in nonwoven materials. In addition, we also use high-quality adhesives and finishing chemicals, which can bond the fibers in the web to each other to obtain a web with a certain strength and integrity.

Laying

The process of forming fibres into a loose fibrous web is called laying. The reduced web strength at this time is very low, and the fibers in the web may be staple fibers or continuous filaments, depending mainly on the process of forming the web. Mosen's laying process mainly consists of dry laying, wet laying, and spin laying.

Bonding

After the fiber web is formed, the reinforcement of the loose fibers held by the fiber web by the related process is called bonding, which gives the fiber web certain physical and mechanical properties and appearance. Juhua's bonding process includes mechanical, thermal, chemical, stitch bonding, etc.

Finishing

Finishing is carried out after the bonding. Finishing is designed to improve the structure and feel of the product, and sometimes to change the properties of the product, such as breathability, absorbency and protection. Finishing methods at Juhua can be divided into two categories: mechanical methods and chemical methods. Mechanical post-treatment includes creping, calendering, shrinking, perforating, and the like. Chemical finishing includes dyeing, printing and functional finishing.
