YOUR POSITION:HOME > Products > Non Woven Fabrics >

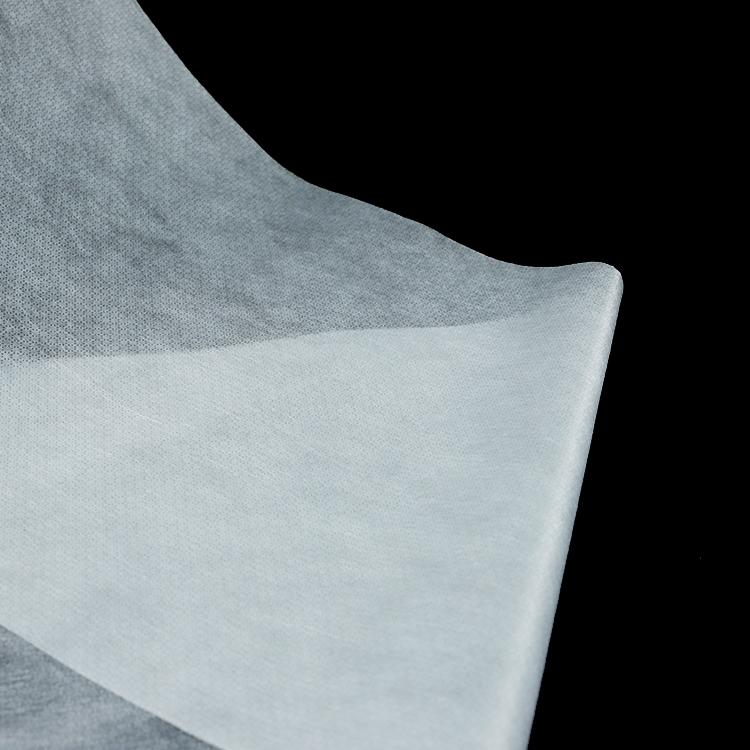

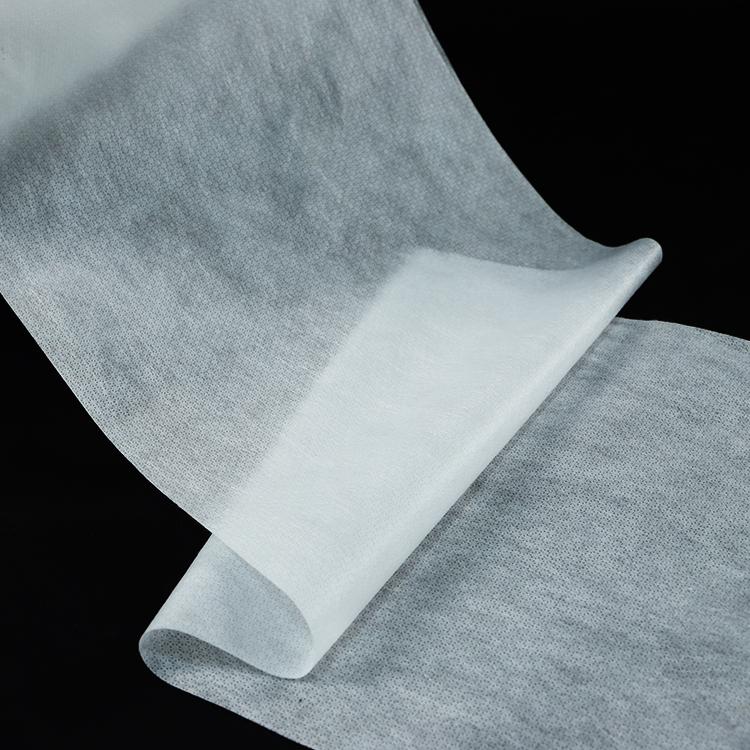

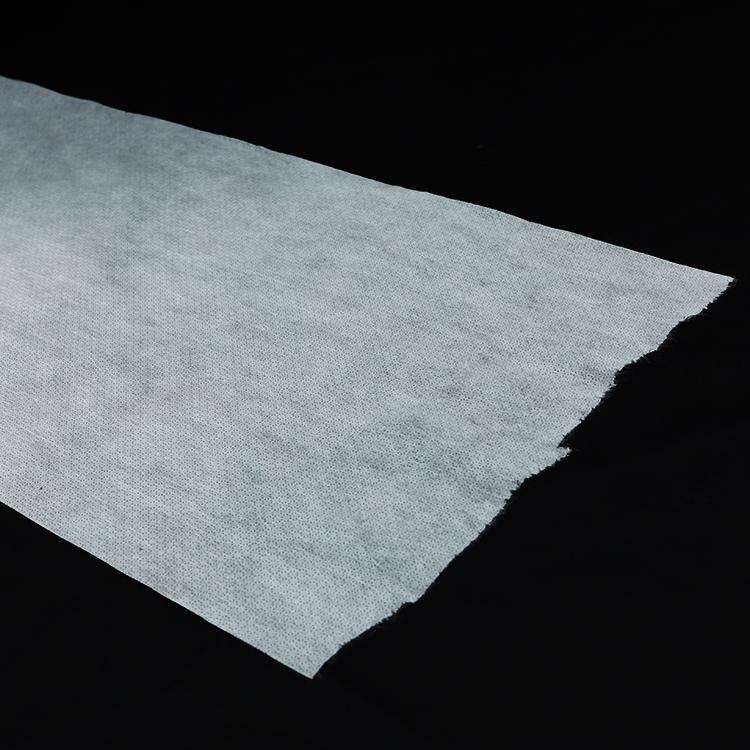

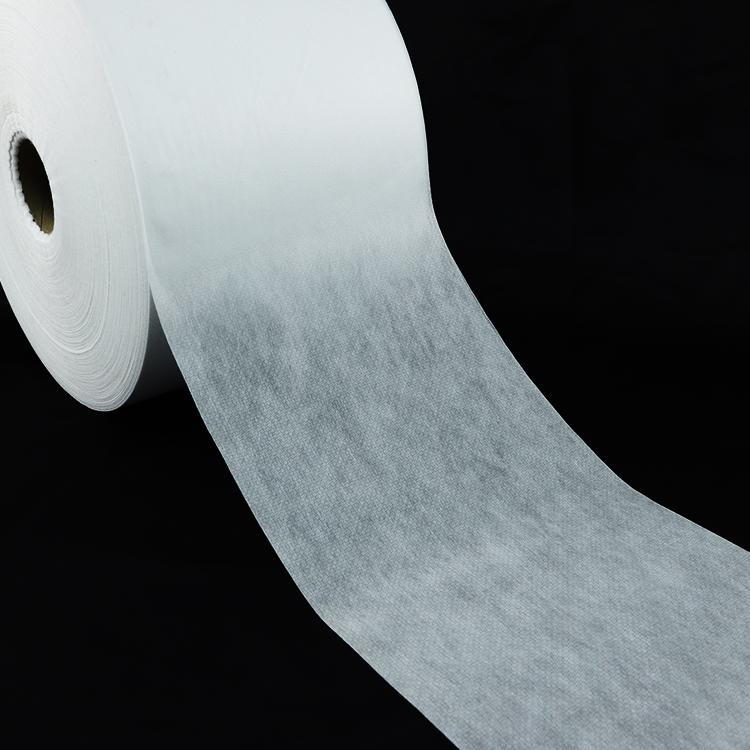

Legcuff SMMS non woven fabric diaper raw material

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Transparent wrapping film with paper board

Legcuff SMMS non woven fabric fabric features:

1. Legcuff SMMS non woven fabrics (Spunbond + Meltblown + Meltblown + Spunbond Nonwovens), basic weight range: 10-100 gsm; width: 90mm-3200mm; it belongs to composite non woven fabrics, which is the extension of SMS non-woven fabric.

2. Polypropylene is the key component of the sterile quality of SMMS non woven fabrics.

3.It is water proof nonwoven.

4.Basic weight is around 10gsm-18gsm for diaper legcuff.

5.Color can be white color, blue color and green color.

6.Application:sanitary napkin, baby diaper and adult diaper legcuff.

7.Loading quantity:5 tons/20GP, 11-12 tons/40HQ


Legcuff SMMS non woven fabric, so far there are still many customers who are not very clear about its production process and principle. Here, the editor will briefly introduce to you. The so-called SMMS non woven fabric is the upper and lower layers of spunbond non-woven fabrics. There are two layers of melt-blown non-woven fabric sandwiched in the middle. That is, four layers of composite cloth. s is the abbreviation of spunbond cloth, m is the abbreviation of meltblown cloth, so I believe everyone will understand it.



Items

Unit

Requirement

Result

Color

White

white

Core inside diameter

mm

76±1

76

Roll slit width

mm

115±2

115

Basis weight

g/m2

15±1.5

14.96

Breaking tension

MD

N/5cm

≥23

28.36

CD

≥11

11.33

Breaking elongation

MD

%

91.22

CD

76.32

Hydrosatic Pressure

pa

≥140

195.3

Others

Wrinkles/ corrugation

None

Splices

None

Roll edge appearance

Neat, Clean, No Obvious Defects

Contamination

No Obvious Contamination; Free From Foreign Matter

Holes/Thin spots/Formation

No Obvious Holes / Thin Spots / With Good Formation

Material was suitable to use in hygiene product.

Related Resource


Application Industry
Our safe and stable products are widely applied in the field of disposable hygiene products and are used to make products that are not limited to the following:
Know More about Applications
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of Legcuff SMMS non woven fabric diaper raw material,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Baby Diaper Raw Materials
Raw materials
for hygiene products
Baby Diaper Raw Materials
Win-Win benefit
Baby Diaper Raw Materials
Mix loading
Baby Diaper Raw Materials
High quality&
Good Service
Legcuff SMMS non woven fabric diaper raw material
Related Quality Control
Excellent QC Talents Work with Us
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.
We Create the Environment for QC
We Create the Environment for QC
The factory environment is the basis of production. We create a quality environment for the production of disposable hygiene product raw materials, build a fully sealed dust-free workshop, and purchase the most advanced high-speed production equipment.
We Formulate a Strict QC Institution
We Formulate a Strict QC Institution
We create a quality environment for the Legcuff SMMS non woven fabric diaper raw material. A better environment leads to systematic production of premium quality . In addition, we have set up a special laboratory for quality inspection.
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Legcuff SMMS non woven fabric diaper raw material Manufacturing
01
Fiber/Raw
Material
Preparation
02
Laying
03
Bonding
04
Finishing
1
Fiber/Raw Material Preparation
Juhua's choice of raw materials is based on processability and the ultimate performance requirements of the fibre web. Fiber is the basis for all nonwoven materials. Most natural and chemical fibers can be used in nonwoven materials. In addition, we also use high-quality adhesives and finishing chemicals, which can bond the fibers in the web to each other to obtain a web with a certain strength and integrity.
2
Laying
The process of forming fibres into a loose fibrous web is called laying. The reduced web strength at this time is very low, and the fibers in the web may be staple fibers or continuous filaments, depending mainly on the process of forming the web. Mosen's laying process mainly consists of dry laying, wet laying, and spin laying.
3
Bonding
After the fiber web is formed, the reinforcement of the loose fibers held by the fiber web by the related process is called bonding, which gives the fiber web certain physical and mechanical properties and appearance. Juhua's bonding process includes mechanical, thermal, chemical, stitch bonding, etc.
4
Finishing
Finishing is carried out after the bonding. Finishing is designed to improve the structure and feel of the product, and sometimes to change the properties of the product, such as breathability, absorbency and protection. Finishing methods at Juhua can be divided into two categories: mechanical methods and chemical methods. Mechanical post-treatment includes creping, calendering, shrinking, perforating, and the like. Chemical finishing includes dyeing, printing and functional finishing.
Legcuff SMMS non woven fabric diaper raw material
Related Services
Materials sourcing
Our upstream raw materials are high-quality materials.
Materials sourcing
Material selection
We will help customers choose the best materials for their needs, based on factors such as comfort, durability, and price.
Material selection
Quality assurance
Our factory provide quality assurance services to ensure that materials meet specific standards or requirements.
Quality assurance
Related Knowledge
Related FAQ
1.Can I make our design on the release paper?
Q:Can I make our design on the release paper? A:Yes. You can send your design.
2.What is your spunlace non woven price ?
Q:What is your spunlace non woven price? A:Our price is absolutely competitive and we are offering an additional discount depending on your quantity.
3.What is the upstreaming material for the spunbond non woven fabric ?
Q:What is the upstreaming material for the spunbond non woven fabric ? A: Polypropylene
4.Could l have my own logo on release paper?
Q:Could l have my own logo on release paper? A:Of course. We are very welcome OEM order, but it need additional cost.
5.What's the width of release paper?
Q:What's the width of release paper? A:As your demand.
6.What is your payment terms of baby diaper raw materials?
Q:What is your payment terms of baby diaper raw materials? A:30% deposit in advance and 70% balance before shipment. L/C is acceptable as well.
