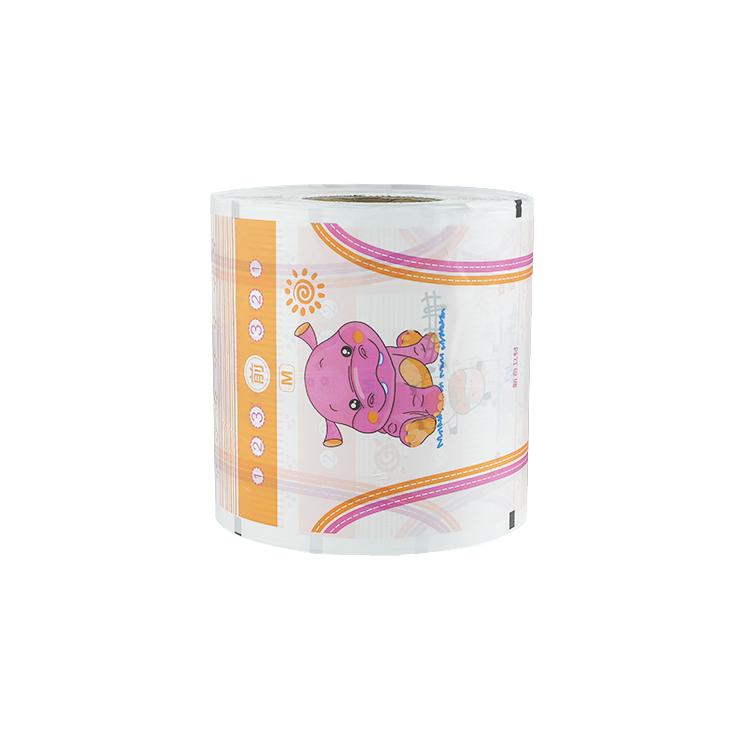

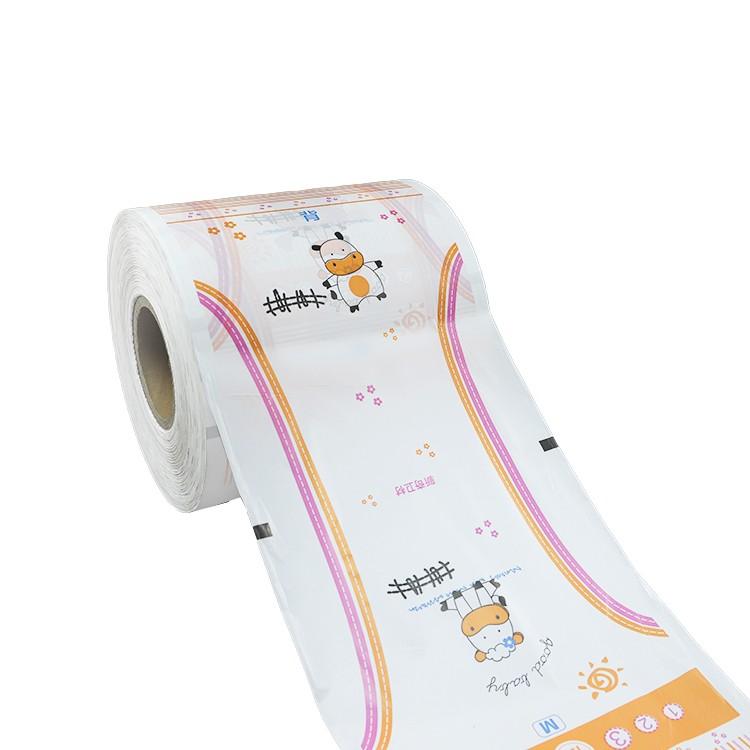

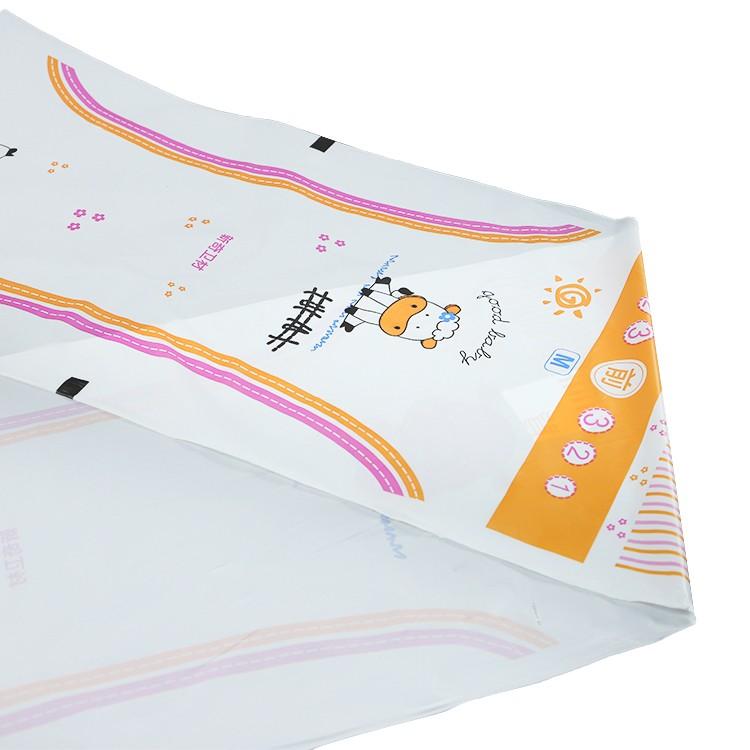

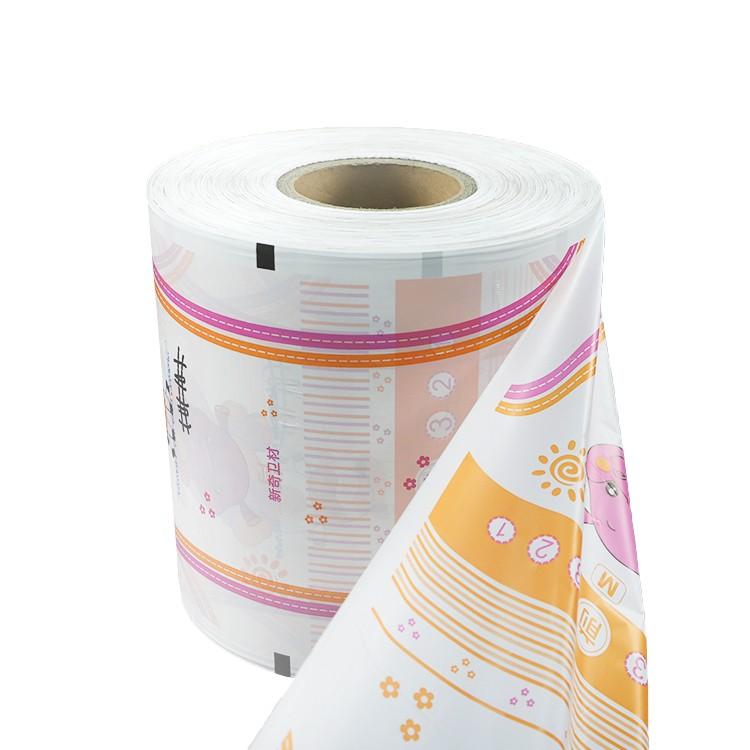

Breathable Film Backsheet for Diaper & Hygiene Products
This breathable film backsheet is a micro-porous polyethylene film designed for baby diapers, sanitary napkins, and adult incontinence products. It combines softness, high elongation, and reliable moisture vapor transmission to support skin dryness and comfort.
Key Features
-
Excellent breathability: Micro-porous structure allows water vapor and air to pass through while restricting liquid flow, helping to reduce the risk of red buttocks.
-
High elongation and extra softness: Provides a cloth-like feel that is gentle against sensitive skin.
-
Free from chemical agents: Formulated without added chemical additives for safer skin contact.
-
Composition: Polyethylene with calcium carbonate (CaCO₃).
-
Basic weight: 15–35 gsm.
-
Width: 50 mm–2300 mm.
-
Printing: Up to 6 colors for branding and product differentiation.
-
Loading quantity: 20–23 tons per 20GP container.
How Breathability Works
Although it looks like a plastic film, this backsheet is a breathable micro-porous film. The micropore structure is the most critical element: water droplets have a minimum diameter of 20 µm, while water vapor molecules measure about 0.0004 µm. With micropores sized in between, the film allows vapor to escape while remaining impermeable to liquid water—keeping the wearer drier and more comfortable.
Quality Test Data
The table below summarizes representative test results from a 20 gsm sample. Final specifications can be adjusted to meet your target performance requirements.
|
|
Properey
|
Grammage (g/m2)
|
Tensile strength MD(N/25mm)
|
MD Elongation(%)
|
Tensile strength CD(N/25mm)
|
CD Elongation(%)
|
WVT
（g/24h/m²）
|
|
Sample Size
|
100cm2
|
2.5cm*20cm
|
2.5cm*20cm
|
2.5cm*20cm
|
2.5cm*20cm
|
8cm*8cm
|
|
Sample Number
|
5
|
5
|
5
|
5
|
5
|
4
|
|
Target
|
20.0
|
≥5
|
≥100
|
≥2
|
≥200
|
1600-3200
|
|
Average
|
20.4
|
8.1
|
240.0
|
2.7
|
471.0
|
2127
|
|
Method
|
ASTM D 3776
|
ASTM D 5035-95
|
ASTM D 5035-95
|
\
|
|
|
|
|
|
|
|
Why Choose This Breathable Film Backsheet?
This backsheet is engineered for diaper and hygiene product manufacturers who need a reliable balance of softness, strength, and moisture management. Its micro-porous structure supports air circulation to help keep skin dry, while the high elongation and tensile values help maintain integrity during high-speed production and daily use.
For detailed specifications, custom width or grammage options, or to request samples, please contact our sales team or download the full product catalog.
