ADL Nonwoven Fabric for Diaper and Sanitary Napkin Raw Materials
This guide provides verified specifications for our Acquisition Distribution Layer (ADL) nonwoven fabric, a high-performance raw material engineered for baby diapers, adult diapers, and sanitary napkins. The material rapidly acquires and distributes liquid away from the top sheet, enhancing dryness and comfort for end users.
Key Material Features
-
Weight Range: 18 g/m² to 60 g/m², produced to your specific request
-
Composition: 100% 6 Denier PE/PP Bicomponent fiber
-

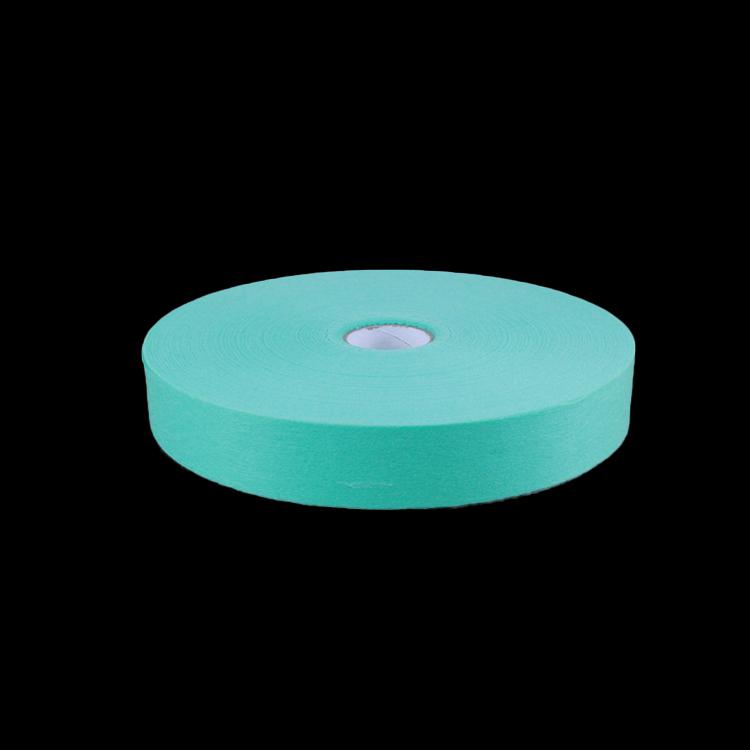

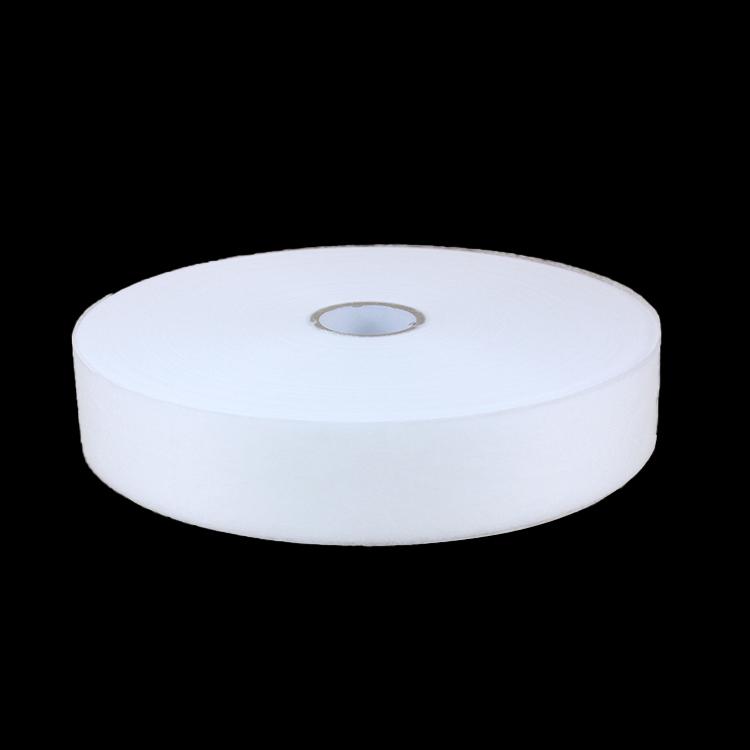

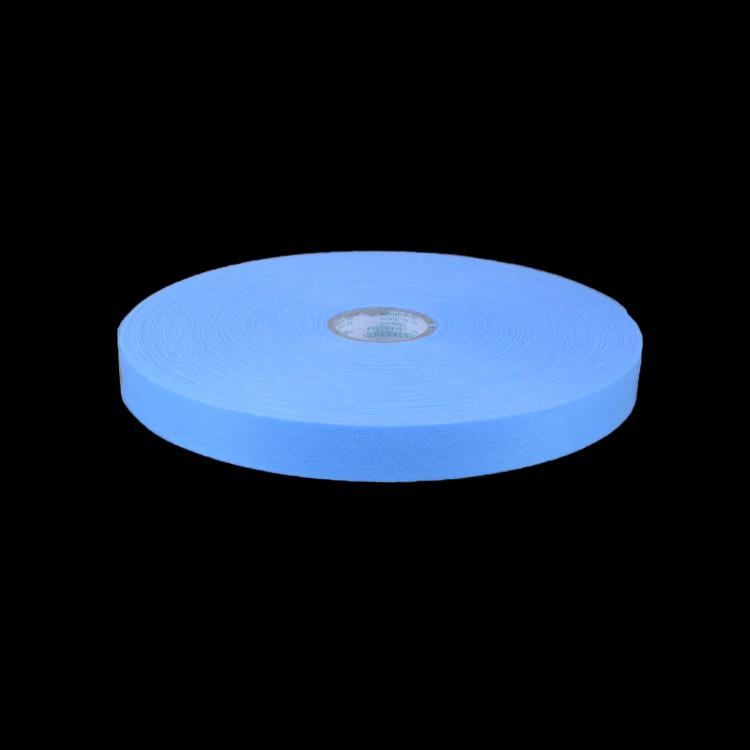

Available Colors: White, blue, and green
-
Width Options: 25 mm to 2000 mm, or customized to your line requirements
-
Primary Application: Raw material for baby diaper, adult diaper, and sanitary napkin production
Loading Quantity Reference
-
One 20GP container: approximately 4.5 tons
-
One 40HQ container: approximately 10.5 tons
Material Performance and Quality Evidence
The following table presents lot production averages from our quality testing, providing clear evidence of the material's consistency and performance characteristics.
|
All the test are lot production averages
|
|
|
Items
|
Unit
|
Requirement
|
Result
|
|
Color
|
|
white
|
white
|
|
Core inside diameter
|
mm
|
76±1
|
76
|
|
Basic weight
|
gsm
|
50±2
|
49.6
|
|
Roll slit width
|
mm
|
65±2
|
65
|
|
Thickness
|
μm
|
0.8
|
0.81
|
|
Tensile strength
|
MD
|
N/5cm
|
∕
|
70.2
|
|
CD
|
∕
|
17.4
|
|
Breaking elongation
|
MD
|
%
|
∕
|
42.6
|
|
CD
|
∕
|
69.2
|
|
Others
|
Wrinkles/ corrugation
|
None
|
|
Splices
|
None
|
|
Roll edge appearance
|
Neat, Clean, No Obvious Defects
|
|
Contamination
|
No Obvious Contamination; Free From Foreign Matter
|
|
Holes/Thin spots/Formation
|
No Obvious Holes / Thin Spots / With Good Formation
|
Production Line Compatibility
This ADL nonwoven is designed for seamless integration into existing diaper and sanitary napkin production lines. The material's consistent roll profile, clean edges, and absence of splices support smooth unwinding and converting processes. For detailed integration guidance or to discuss your specific line configuration, please contact our technical team.
Request a Quote or Sample
To request a quote, discuss your specific application, or order samples, please contact our sales team. We are ready to support your product development and production needs. For more information on our range of hygiene raw materials, explore our Non Woven Fabrics catalog or review our case study on shipping raw materials to Africa.
